COMBINATION METER > INSTALLATION

for Preparation Click here



1. INSTALL COMBINATION METER ASSEMBLY

  1. Connect the connector.

  1. Engage the 2 clips.

  1. Install the combination meter assembly with the 2 screws.

  1. Engage the clamp.



2. INSTALL METER HOOD SUB-ASSEMBLY

  1. Connect the connector.

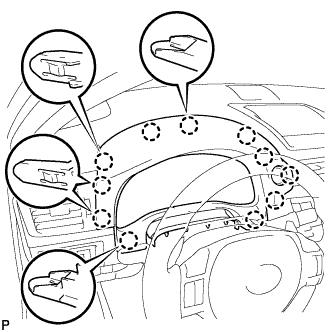

    B263498

  1. Engage the 11 claws.



    B263494

  1. Engage the 2 guides and 4 clips to install the meter hood sub-assembly.



3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



4. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE

  1. Engage the 4 claws and 2 guides to install the rear floor board upper No. 3 plate.



5. INSTALL DECK FLOOR BOX RH

  1. Engage the 6 guides.

  1. Install the deck floor box RH with the clip.



6. INSTALL REAR NO. 3 FLOOR BOARD

  1. Install the rear No. 3 floor board.



7. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



8. INSTALL REAR NO. 2 FLOOR BOARD

  1. Install the rear No. 2 floor board.
