COMBINATION SWITCH > INSTALLATION

for Preparation Click here

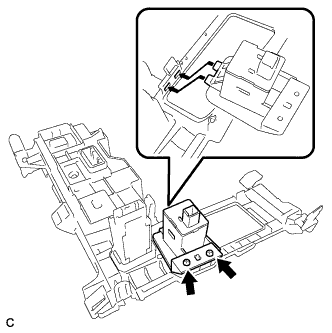

1. Engage the 2 claws to install the transmission shift main switch.


2. Put the 2 guides in position.


3. Install the position indicator housing assembly to the combination switch assembly with the 2 screws.


   Torque:

   0.8 N*m{ 8 kgf*cm , 7 in.*lbf }

4. Connect each connector.


5. Engage the clamp.


6. Engage the 2 guides and 6 claws to install the combination switch assembly.


1. Turn the shift lever knob clockwise and install the shift lever knob sub-assembly.


1. Connect each connector.


2. Engage the clamp.


3. Engage the 12 claws to install the upper console panel sub-assembly.


   NOTICE:

   When installing the upper console panel sub-assembly, make sure not to pinch the wire harness connected to the front end of the remote touch (w/ Navigation System).

4. Close the console compartment door.


1. Engage the 2 guides, clip and 5 claws to install the upper No. 2 console panel garnish.


1. Engage the 3 guides, clip and 4 claws to install the upper No. 1 console panel garnish.


1. Engage the 4 guides and 7 claws to install the lower center instrument panel finish panel.


2. Close the glove compartment door.


NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

1. Engage the 4 claws and 2 guides to install the rear floor board upper No. 3 plate.


1. Engage the 6 guides.


2. Install the deck floor box RH with the clip.


1. Install the rear No. 3 floor board.


1. Install the rear deck floor box.


1. Install the rear No. 2 floor board.
