POWER SEAT SWITCH > REMOVAL

for Preparation Click here



1. REMOVE FRONT SEAT ASSEMBLY
(Click here)


2. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB


    B269607

  1. Using a moulding remover, disengage the 4 claws and remove the slide and vertical power seat switch knob.



3. REMOVE RECLINING POWER SEAT SWITCH KNOB


    B269611

  1. Using a moulding remover, disengage the 4 claws and remove the reclining power seat switch knob.



4. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD

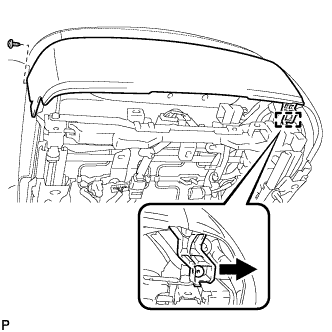

    B269615

  1. Remove the screw.

  1. Disengage the guide as shown in the illustration.



    B269619

  1. Disengage the claw and 2 guides, and remove the front inner No. 1 seat cushion shield as shown in the illustration.



    B269623

  1. Using a clip remover, remove the clip.



5. REMOVE FRONT SEAT CUSHION SHIELD


    B269625

  1. Separate the rubber band of the separate type front seatback cover.



    B269627E01

  1. Disengage the 8 claws and guide (1).

  1. Disengage the clip and guide (2), and disconnect the front seat cushion shield.



    B269629E01

  1. Disengage the 2 claws and open the wire harness cover.
    Text in Illustration
    *A
    		w/ Seat Position Memory System:
    *1
    		Wire Harness Cover

  1. Remove the wire harness from the wire harness cover.

  1. Disengage the 2 clamps.

  1. w/o Seat Position Memory System:

    1. Disconnect the connector and remove the front seat cushion shield.

  1. w/ Seat Position Memory System:

    1. Disconnect the 2 connectors and remove the front seat cushion shield.



6. REMOVE FRONT POWER SEAT SWITCH


    B269631

  1. Remove the 3 screws and front power seat switch.
