DOOR CONTROL SWITCH > REMOVAL

for Preparation Click here



1. REMOVE DOOR ASSIST GRIP COVER (for Front Passenger Side)

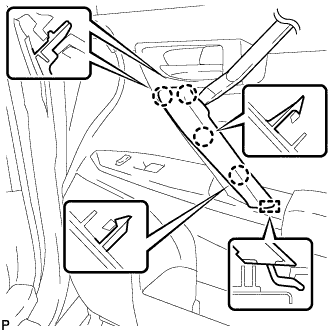

    B266098

  1. Using a moulding remover, disengage the 4 claws and guide, and remove the door assist grip cover.



2. REMOVE DOOR ASSIST GRIP ASSEMBLY (for Front Passenger Side)

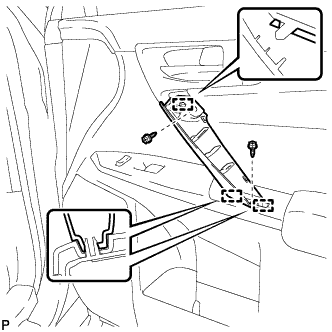

    B266100

  1. Remove the 2 screws.

  1. Disengage the 3 guides and remove the door assist grip assembly.



3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

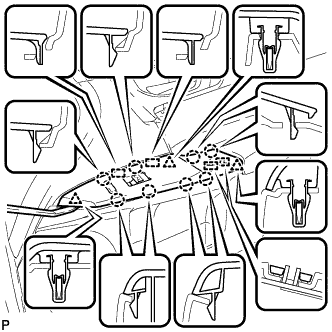

    B266102

  1. Using a moulding remover, disengage the 3 clips, 8 claws and 4 guides as shown in the illustration.

  1. Disconnect each connector and remove the power window regulator switch assembly with front door armrest base panel.



4. REMOVE DOOR CONTROL SWITCH ASSEMBLY


    B268128

  1. Disengage the 2 claws and remove the door control switch assembly.
