FRONT DOOR LOCK > INSTALLATION

for Preparation Click here



1. INSTALL FRONT DOOR LOCK ASSEMBLY

NOTICE:
  1. When reusing the removed front door lock assembly, replace the door lock wiring harness seal on the connector with a new one.
  2. Do not allow grease or dust to contact the door lock wiring harness seal surface of the connector.
  3. Reusing the door lock wiring harness seal or using a damaged door lock wiring harness seal may cause water intrusion. This may result in a malfunction of the front door lock assembly.



    B269329
  1. Install the front door inside locking cable assembly.



    B269325
  1. Engage the 3 claws.



    B269323
  1. Install the front door lock remote control cable assembly.

  1. Apply MP grease to the sliding parts of the front door lock assembly.



    B269317
  1. Install a new door lock wiring harness seal to the front door lock assembly.



    B269314E02

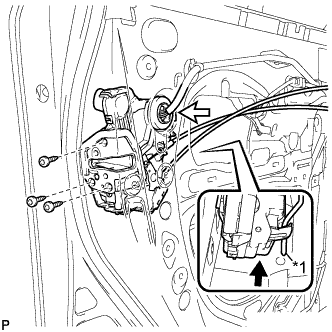

  1. Insert the front door lock open rod to the front door lock assembly.
    Text in Illustration
    *1
    Front Door Lock Open Rod

  1. Make sure that the front door lock open rod is securely connected to the front door lock assembly.

  1. Using a T30 "TORX" socket wrench, install the front door lock assembly with the 3 screws.

    Torque:
    5.0 N*m{ 51 kgf*cm , 44 in.*lbf }

  1. Connect the connector.



2. INSTALL FRONT DOOR OUTSIDE HANDLE COVER WITH LOCK CYLINDER ASSEMBLY (for Driver Side)


    B270727
  1. Install the front door outside handle cover with lock cylinder assembly.

    HINT:
    Make sure that the front door lock cylinder rod is inserted into the front door lock assembly.



    B269289
  1. Using a T30 "TORX" socket wrench, install the front door lock cylinder with the screw.

    Torque:
    4.0 N*m{ 41 kgf*cm , 35 in.*lbf }



    B269287
  1. Install the hole plug.



3. INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY


    B269285
  1. Engage the guide.

  1. Install the front door rear lower frame sub-assembly with the bolt as shown in the illustration.

    Torque:
    8.5 N*m{ 87 kgf*cm , 75 in.*lbf }



4. INSTALL FRONT DOOR GLASS RUN


    B269281
  1. Install the front door glass run.



5. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
  1. Connect the cable to the negative (-) battery terminal.

  1. Connect the power window regulator master switch assembly and move the front door glass sub-assembly so that the door glass bolts can be seen.

  1. Disconnect the cable from the negative (-) battery terminal.

    NOTICE:
    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

  1. Disconnect the power window regulator master switch assembly.



    B269272E01
  1. Insert the front door glass sub-assembly into the front door panel along the front door glass run as indicated by the arrows in the order shown in the illustration.



    B269270E01
  1. Install the front door glass sub-assembly with the 2 bolts.

    Torque:
    5.5 N*m{ 56 kgf*cm , 49 in.*lbf }

    HINT:
    Tighten the bolts in the order shown in the illustration.



    B269268
  1. Install the grommet.



6. INSTALL FRONT DOOR SERVICE HOLE COVER
  1. Apply butyl tape to the front door panel.



    B269266E01
  1. Pass the front door lock remote control cable assembly and front door inside locking cable assembly through a new front door service hole cover.
    Text in Illustration
    *1
    Reference Point

  1. Attach the front door service hole cover according to the reference points on the front door panel.

    NOTICE:
    Securely install the front door service hole cover preventing wrinkles and air bubbles.



7. INSTALL FRONT DOOR TRIM BRACKET (for Driver Side)


    B266126
  1. Install the front door trim bracket with the 2 screws.



8. INSTALL FRONT DOOR TRIM BRACKET (for Front Passenger Side)


    B266129
  1. Install the front door trim bracket with the 2 screws.



9. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY (for Driver Side)


    B266095E01
  1. Connect the front door lock remote control cable assembly and front door inside locking cable assembly.
    Text in Illustration
    *1
    Front Door Inside Locking Cable Assembly
    *2
    Front Door Lock Remote Control Cable Assembly

  1. w/ Seat Position Memory System:

    1. Connect the connector.



    B266092
  1. Engage the 11 clips and install the front door trim board sub-assembly.

  1. Install the 2 screws.

  1. Remove the protective tape.



10. INSTALL DOOR ARMREST COVER (for Driver Side)


    B266086
  1. Install the door armrest cover.



11. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)
  1. Connect the connector.



    B266083
  1. Engage the 2 guides, 3 clips and 7 claws, and install the power window regulator master switch assembly with front door armrest base panel.



12. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY (for Front Passenger Side)


    B266097E01
  1. Connect the front door lock remote control cable assembly and front door inside locking cable assembly.
    Text in Illustration
    *1
    Front Door Inside Locking Cable Assembly
    *2
    Front Door Lock Remote Control Cable Assembly



    B266110
  1. Engage the 11 clips and install the front door trim board sub-assembly.

  1. Install the 3 screws.

  1. Remove the protective tape.



13. INSTALL DOOR ASSIST GRIP ASSEMBLY (for Front Passenger Side)


    B266100
  1. Engage the 3 guides and install the door assist grip assembly.

  1. Install the 2 screws.



14. INSTALL DOOR ASSIST GRIP COVER (for Front Passenger Side)


    B274554
  1. Engage the guide and 4 claws, and install a new door assist grip cover.



15. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
  1. Connect the connector.



    B266103
  1. Engage the 4 guides, 3 clips and 8 claws, and install the power window regulator switch assembly with front door armrest base panel.



16. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH


    B266080
  1. Engage the clip and claws, and install the front door lower frame bracket garnish.



17. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG


    B266077
  1. Engage the 3 claws and install the front door inside handle bezel plug.



18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).



19. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE
  1. Engage the 4 claws and 2 guides to install the rear floor board upper No. 3 plate.



20. INSTALL DECK FLOOR BOX RH
  1. Engage the 6 guides.

  1. Install the deck floor box RH with the clip.



21. INSTALL REAR NO. 3 FLOOR BOARD
  1. Install the rear No. 3 floor board.



22. INSTALL REAR DECK FLOOR BOX
  1. Install the rear deck floor box.



23. INSTALL REAR NO. 2 FLOOR BOARD
  1. Install the rear No. 2 floor board.



24. INITIALIZE POWER WINDOW CONTROL SYSTEM
(Click here)


25. INSPECT SRS WARNING LIGHT
(Click here)
