DOOR CONTROL RECEIVER > INSTALLATION

for Preparation Click here



1. INSTALL DOOR CONTROL RECEIVER

  1. Install the door control receiver with the bolt.

  1. Connect the connector.



2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH

HINT:
Use the same procedure described for the LH side .



3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

HINT:
Use the same procedure described for the LH side .



4. CONNECT REAR SEAT OUTER BELT ASSEMBLY RH

HINT:
Use the same procedure described for the LH side .



5. INSTALL NO. 2 ROOM LIGHT ASSEMBLY

  1. Connect the connector.



    E219172

  1. Engage the claw to install the No. 2 room light assembly.



6. INSTALL TONNEAU COVER HOLDER CAP

HINT:
Use the same procedure described for the LH side .



7. INSTALL TONNEAU COVER HOOK


    B270564

  1. Engage the 2 claws and pin to install the tonneau cover hook.



8. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

HINT:
Use the same procedure described for the LH side .



9. INSTALL ROPE HOOK ASSEMBLY

HINT:
Use the same procedure described for the LH side .



10. INSTALL REAR SEAT SIDE GARNISH RH

HINT:
Use the same procedure described for the LH side .



11. INSTALL REAR SEAT SIDE COVER RH

  1. Engage the 3 claws and 2 clips to install the rear seat side cover RH.



12. INSTALL REAR DECK TRIM COVER

  1. Engage the 4 clips to install the rear deck trim cover.



13. INSTALL DECK TRIM SERVICE HOLE COVER


    B270550E01

  1. Engage the 2 guides (B).

  1. Engage the 2 claws and guide (A) to install the deck trim service hole cover.



14. INSTALL REAR NO. 1 FLOOR BOARD

  1. Engage the 2 claws and 2 clips.

  1. Install the rear No. 1 floor board with the bolt.



15. INSTALL REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY

  1. Engage the claw and 2 clips to install the rear No. 2 floor board sub-assembly.



16. INSTALL REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY

  1. Engage the 2 claws and 2 clips to install the rear No. 1 floor board sub-assembly.



17. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

  1. Install the tonneau cover assembly.



18. INSTALL DECK FLOOR BOX LH (w/o Woofer)

  1. Engage the 6 guides.

  1. Install the deck floor box LH with the clip.



19. INSTALL REAR NO. 4 FLOOR BOARD (w/o Woofer)

  1. Install the rear No. 4 floor board.



20. INSTALL REAR NO. 4 FLOOR BOARD (w/ Woofer)

  1. Engage the 2 clips and 3 guides to install the rear No. 4 floor board.



21. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE

  1. Engage the 4 claws and 2 guides to install the rear floor board upper No. 3 plate.



22. INSTALL DECK FLOOR BOX RH

  1. Engage the 6 guides.

  1. Install the deck floor box RH with the clip.



23. INSTALL REAR NO. 3 FLOOR BOARD

  1. Install the rear No. 3 floor board.



24. INSTALL REAR DECK FLOOR BOX

  1. Install the rear deck floor box.



25. INSTALL REAR NO. 2 FLOOR BOARD

  1. Install the rear No. 2 floor board.



26. INSTALL REAR SEATBACK ASSEMBLY RH

  1. Place the rear seatback assembly RH in the cabin.

    NOTICE:
    Be careful not to damage the vehicle body.

  1. Install the rear seatback assembly RH with the 2 bolts.

    Torque:
    37 N*m{ 375 kgf*cm , 27 ft.*lbf }

  1. Engage the fastener to connect the rear No. 1 floor board sub-assembly.



27. INSTALL REAR SEAT CUSHION LOCK HOOK


    B274370

  1. Engage the claw to install a new rear seat cushion lock hook.

    NOTICE:
    Rear seat cushion lock hooks must not be reused.

    HINT:
    Use the same procedure the LH side and RH side.



28. INSTALL REAR SEAT CUSHION ASSEMBLY

  1. Place the rear seat cushion assembly in the cabin.

    NOTICE:
    Be careful not to damage the vehicle body.



    B274151

  1. Pass the rear center seat outer belt assembly through the rear seat cushion assembly.

  1. Install the rear center seat outer belt assembly with the bolt.

    Torque:
    42 N*m{ 428 kgf*cm , 31 ft.*lbf }



    B275285

  1. Engage the guide as shown in the illustration.

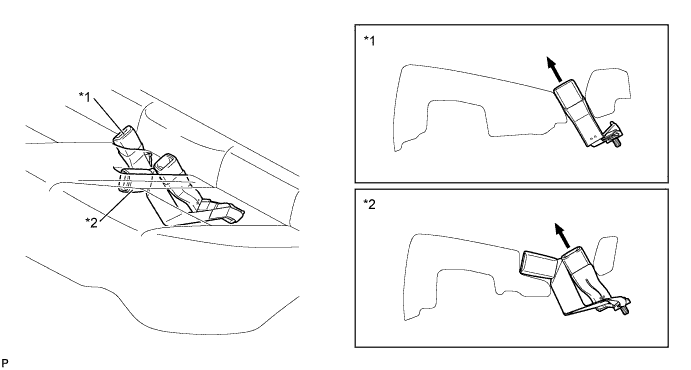

  1. Pass the rear seat inner with center belt assembly LH and rear seat inner belt assembly through the rear seat cushion assembly as shown in the illustration.


    B274150E01


    Text in Illustration
    *1
    		Rear Seat Inner Belt Assembly
    		*2
    		Rear Seat Inner with Center Belt Assembly LH



    B274367

  1. Engage the 2 hooks of the seat cushion to the vehicle body as shown in the illustration.

  1. Confirm that the seat cushion is firmly installed.

    NOTICE:
    When installing the seat cushion, make sure that the seat belt buckles are not under the seat cushion.



29. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH


    B270532E01

  1. Align the alignment mark (yellow green) on the weatherstrip with the protruding portion on the body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip RH.
    Text in Illustration
    *a
    		Alignment Mark (Yellow green)

    NOTICE:
    After installation, check that the corners fit correctly.



30. INSTALL REAR DOOR SCUFF PLATE RH

HINT:
Use the same procedure described for the LH side .
