WIRELESS DOOR LOCK BUZZER > REMOVAL

for Preparation Click here


HINT:
  1. Use the same procedure for RHD and LHD models.
  2. The procedure listed below is for an LHD model.
  3. Perform the procedure on the driver side of the vehicle.



1. REMOVE FRONT WHEEL


2. REMOVE FRONT FENDER LINER

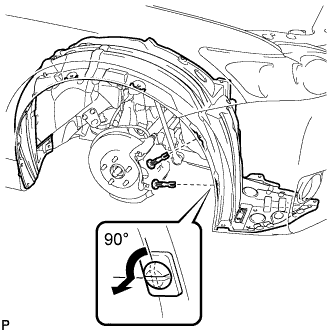

    E220607E01

  1. Using a screwdriver, turn each pin 90 degrees counterclockwise and remove the 2 pin hold clips.

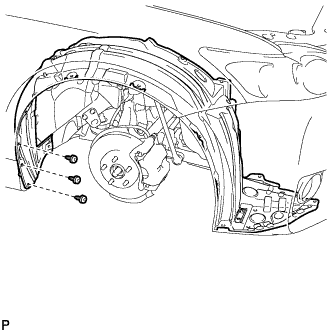

    E220608

  1. Using a 4 mm hexagon wrench, remove the 3 screws.

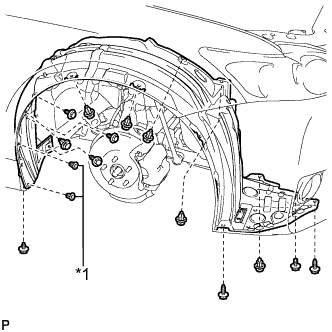

    E220609E01

  1. Remove the 6 screws and bolt.

  1. Remove the 6 clips and 2 grommets and front fender liner RH.

    HINT:
    The grommets need to be replaced with new ones because they will break when they are removed.

    Text in Illustration
    *1
    		Grommet



3. REMOVE WIRELESS DOOR LOCK BUZZER

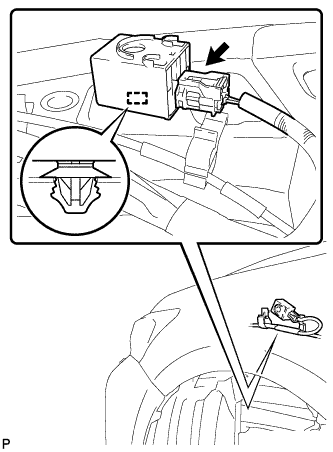

    B268135

  1. Disconnect the connector.

  1. Disengage the clamp and remove the wireless door lock buzzer.
