Home › Vehicle Interior › SUPPLEMENTAL RESTRAINT SYSTEMS › FRONT SEAT SIDE AIRBAG ASSEMBLY

FRONT SEAT SIDE AIRBAG ASSEMBLY > REMOVAL

for Preparation Click here


CAUTION:
  1. Be sure to read Precaution thoroughly before servicing (Click here).
  2. If the side airbag was deployed, replace the front seat airbag assembly, front seatback cover, separate type front seatback spring assembly, separate type front seatback cover and separate type front seatback pad with a new one.
  3. Wear protective gloves. Sharp areas on the seat frame and adjuster may injure your hands.

HINT:
Use the same procedures for the LH side and RH side.



1. REMOVE FRONT SEAT ASSEMBLY
for Manual Seat: (Click here)
for Power Seat: (Click here)


2. REMOVE AIRBAG WIRE HARNESS (for Manual Seat)

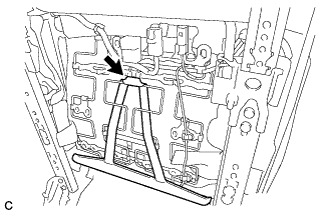

    B268534

  1. Disconnect the rubber band.



    B268535

  1. Disengage the claw and 3 clamps to remove the airbag wire harness.



    B270256

  1. Disengage the fastener and separate the airbag wire harness.



  1. w/ Seat Heater System:



      B274096

    1. Disconnect the connector.

    2. Disengage the clamp.



3. REMOVE AIRBAG WIRE HARNESS (for Power Seat)


    B268539

  1. Disconnect the rubber band.



    B268540

  1. Disengage the claw and 3 clamps to remove the airbag wire harness.



    B270256

  1. Disengage the fastener and separate the airbag wire harness.



  1. w/ Seat Heater System:



      B274096

    1. Disconnect the connector.

    2. Disengage the clamp.



4. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
for Manual Seat:
for Power Seat:


5. REMOVE FRONT SEATBACK COVER
for Manual Seat:
for Power Seat:


6. REMOVE FRONT SEAT AIRBAG ASSEMBLY


    B268538

  1. Disengage the 2 clamps.

  1. Remove the 2 nuts and the front seat airbag assembly.

    CAUTION:
    1. The nuts must not be reused.
    2. Make sure that the separate type front seatback spring assembly is not deformed. If it is, replace it with a new one.
