CRUISE CONTROL SYSTEM > SYSTEM DIAGRAM

for Preparation Click here

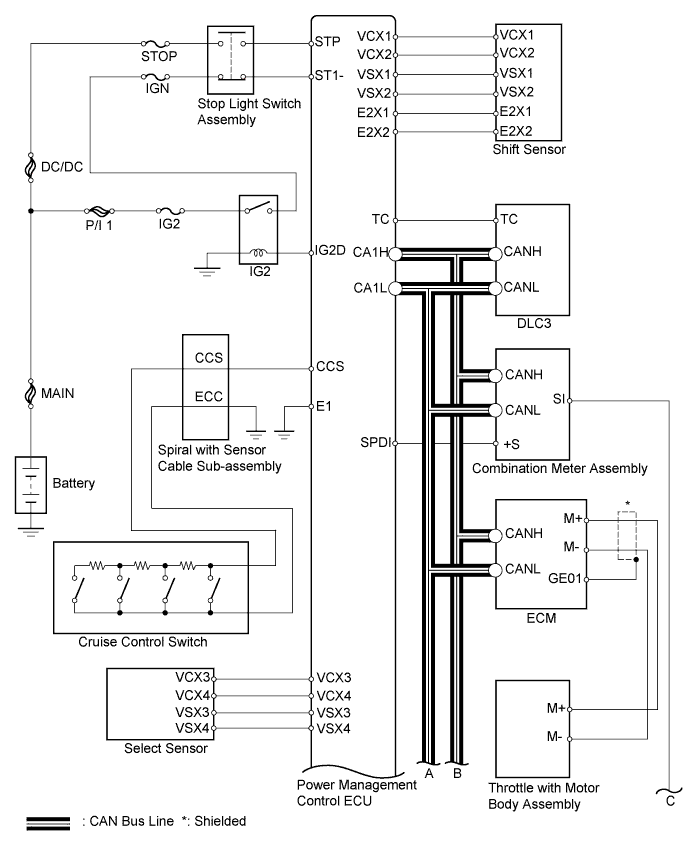

E223064E01

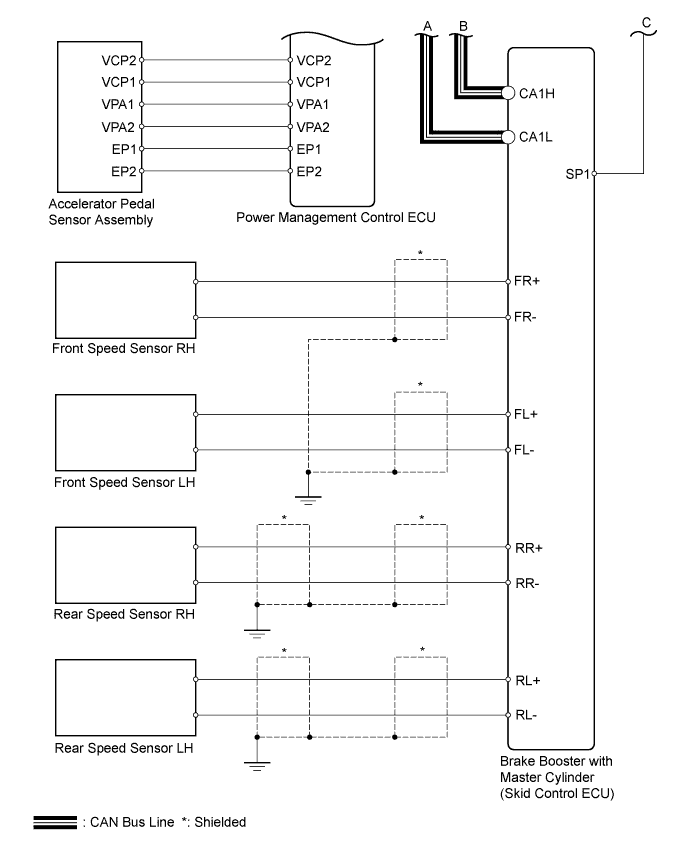

E222529E01


Communication Table
Sender
Receiver
Signal
Line
Power management control ECU
Combination meter assembly
(Cruise Control Indicator Light)
(Cruise Control SET Indication)
  1. Cruise control indicator and cruise control SET indication operation signal
  2. Cruise control diagnosis signal
CAN
Brake booster with master cylinder (Skid control ECU)
Power management control ECU
Electronically controlled brake system malfunction signal
CAN
Power management control ECU
ECM
Throttle actuator operation signal
CAN
ECM
Power management control ECU
Throttle position signal
CAN
