ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM > SYSTEM DIAGRAM

for Preparation Click here


The configuration of the electronic control system in the A760E automatic transmission is as shown in the following chart.

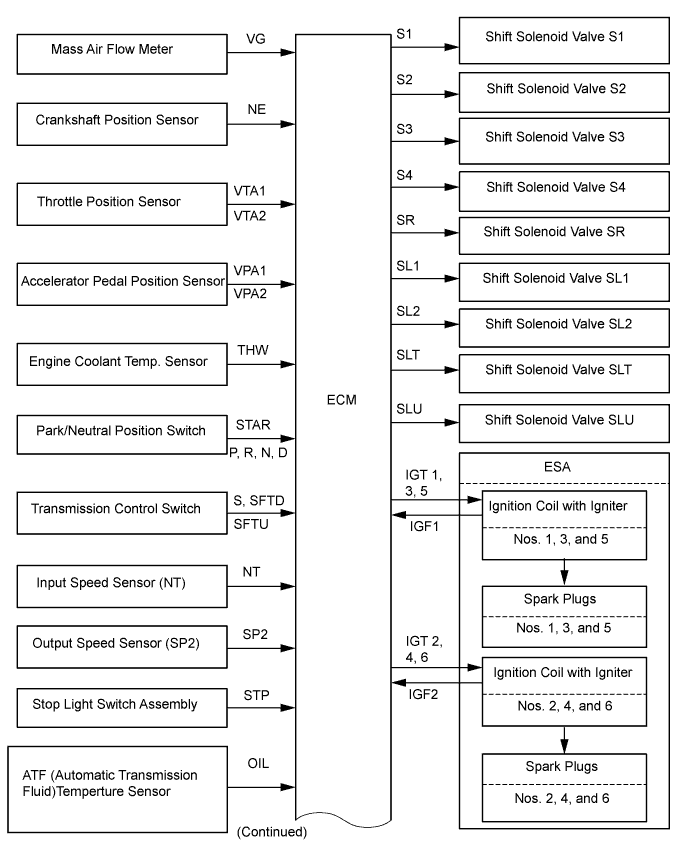

C110589E05

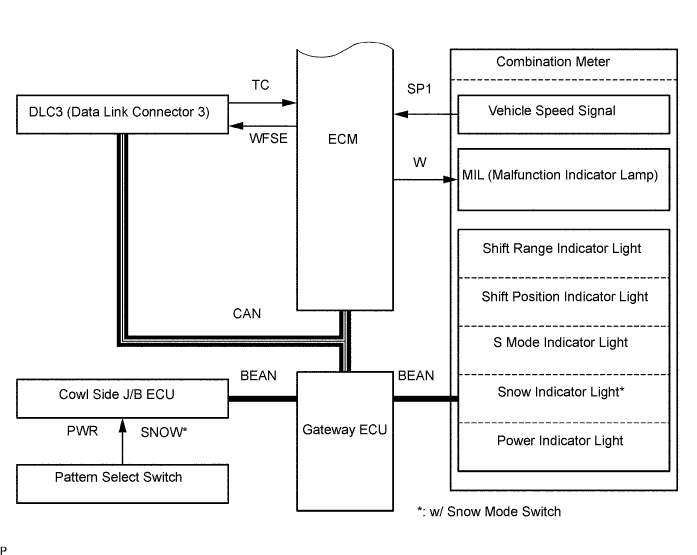

G023414E15

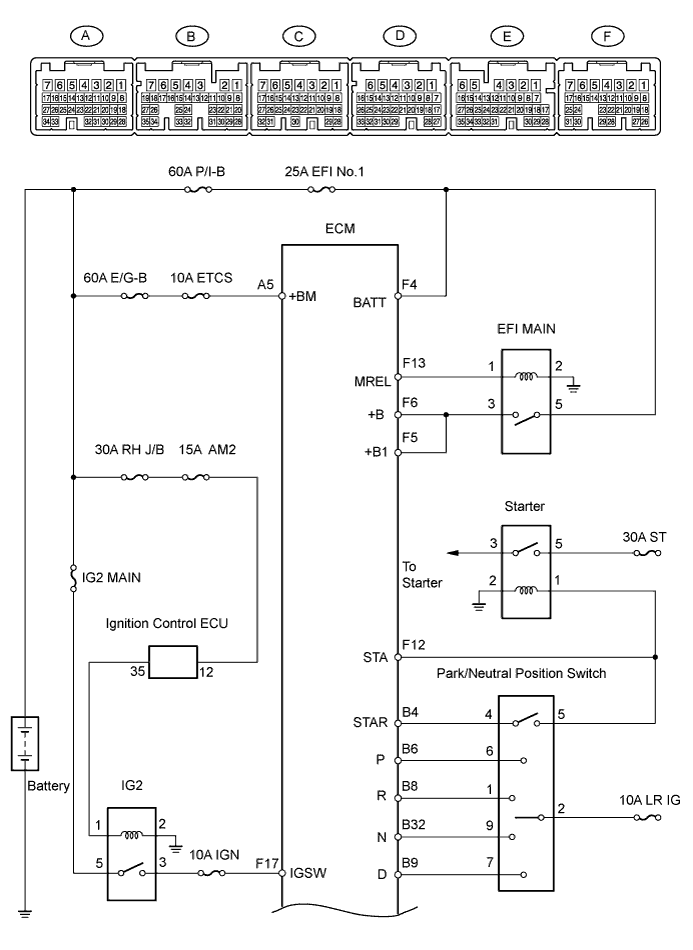

C110617E04

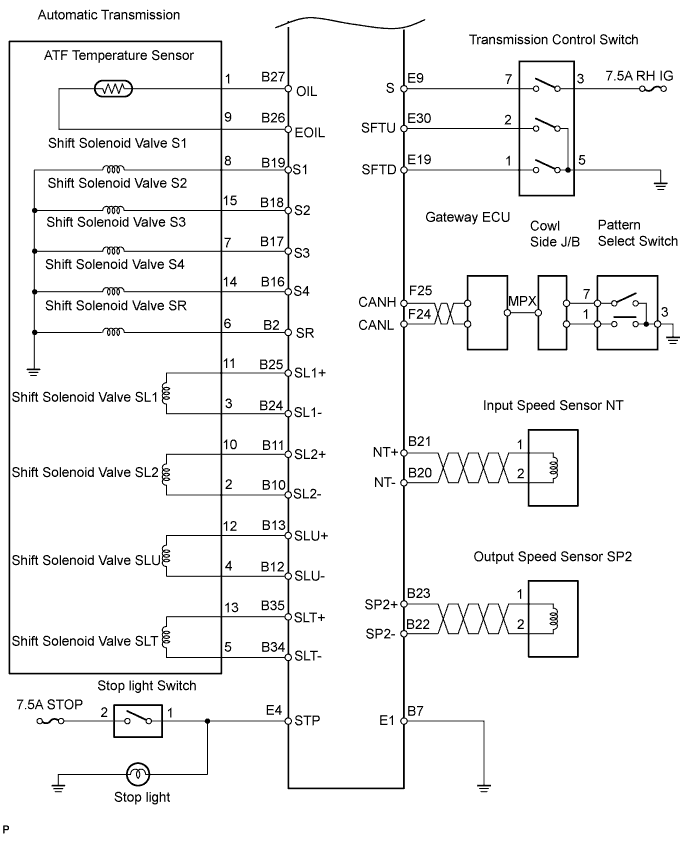

C110628E01
