ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION SYSTEM > SYSTEM DIAGRAM

for Preparation Click here


The configuration of the electronic control system in the A761E automatic transmission is as shown in the following chart.

C111336E02

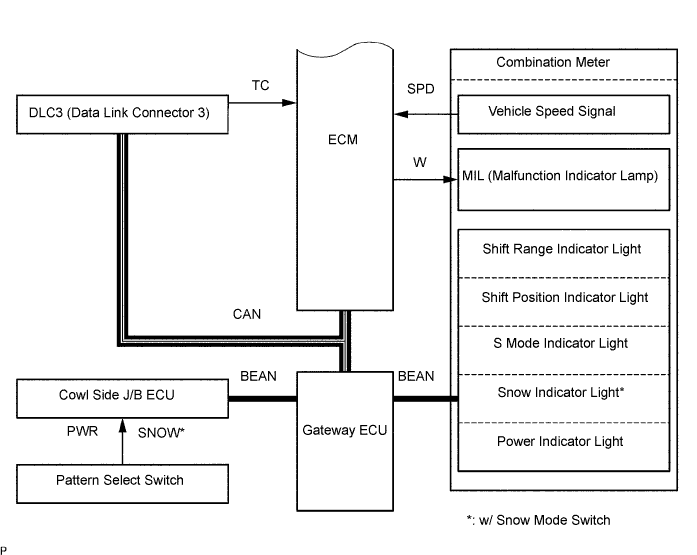

G023414E07

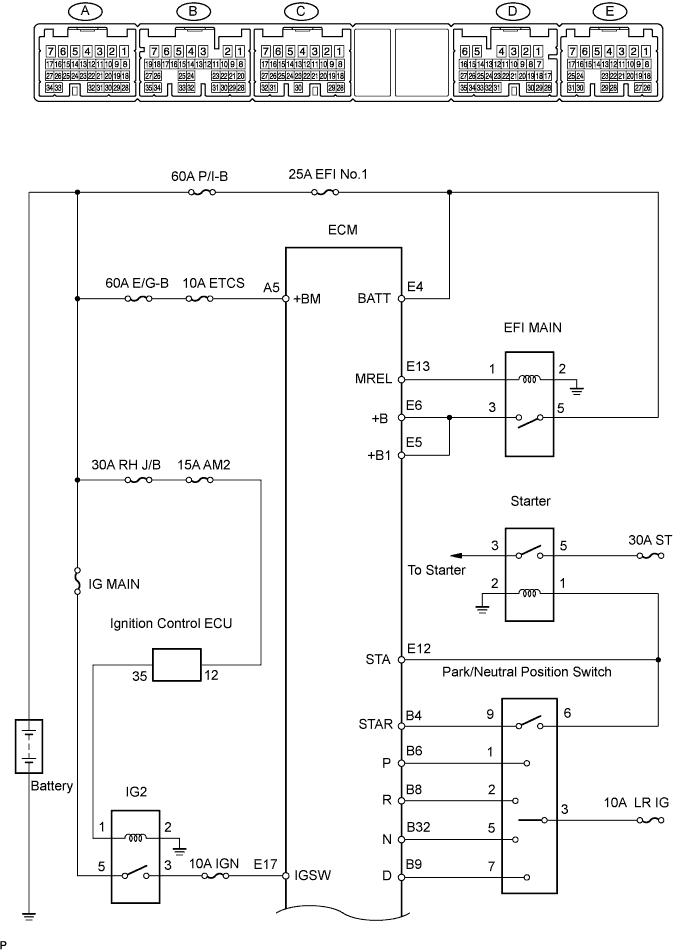

C106183E04

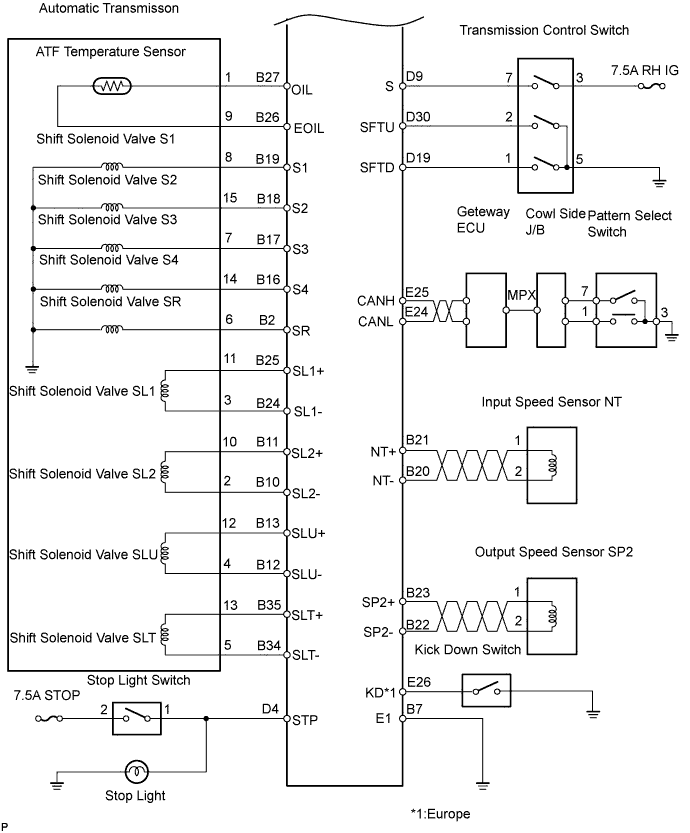

C111328E02
