REMOVAL

Removal / installation


1. REMOVE COOL AIR INTAKE DUCT SEAL

  1. A127530
    Remove the 11 clips and intake duct seal.


2. REMOVE ENGINE ROOM SIDE COVER LH

  1. A123702E01
    Remove the 5 clips and side cover.


3. REMOVE ECM COVER

  1. A103638E01
    Remove the 3 bolts and ECM cover.

    NOTICE:
    1. Remove all water from on and around the ECM cover.
    2. Perform the inspection indoors to avoid rain.
    3. Be sure to prevent water intrusion to the ECM (connectors and screw parts).


4. REMOVE ECM

  1. Disconnect the ECM connectors.

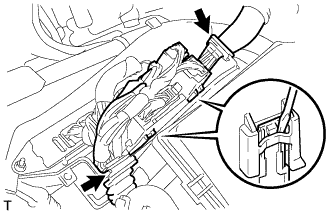

    1. A119448
      Using a screwdriver, disconnect the connector holder.

    2. Disconnect the 6 ECM connectors.

  1. A105292
    Remove the 2 nuts and ECM.
