PARTS LOCATION

Parts location

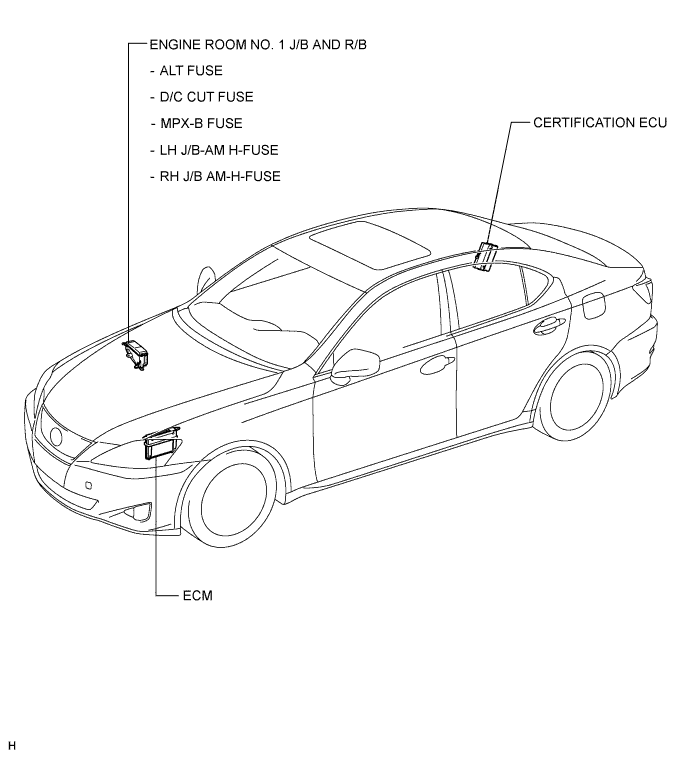

B122446E01

1 / 4

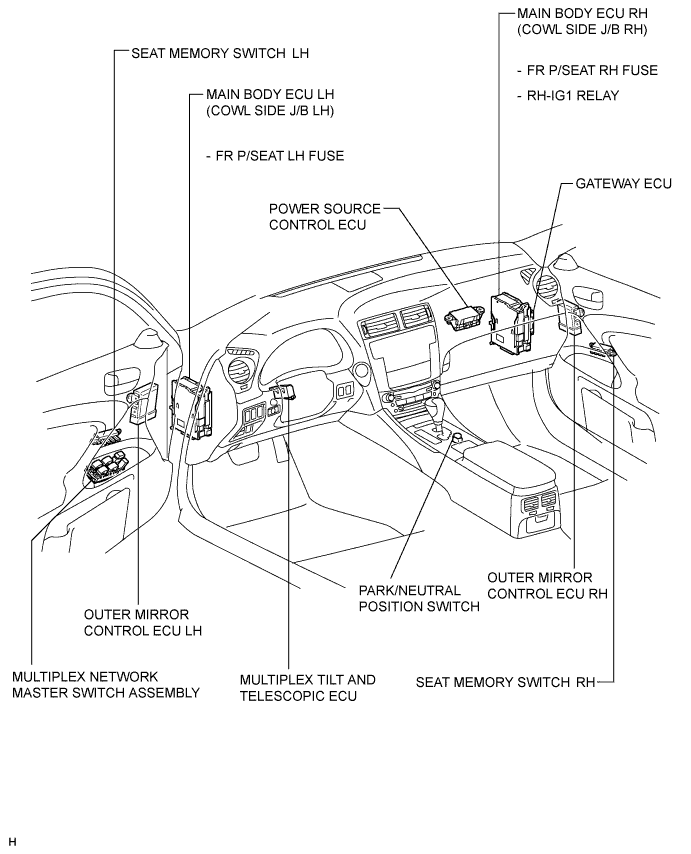

B122447E01

2 / 4

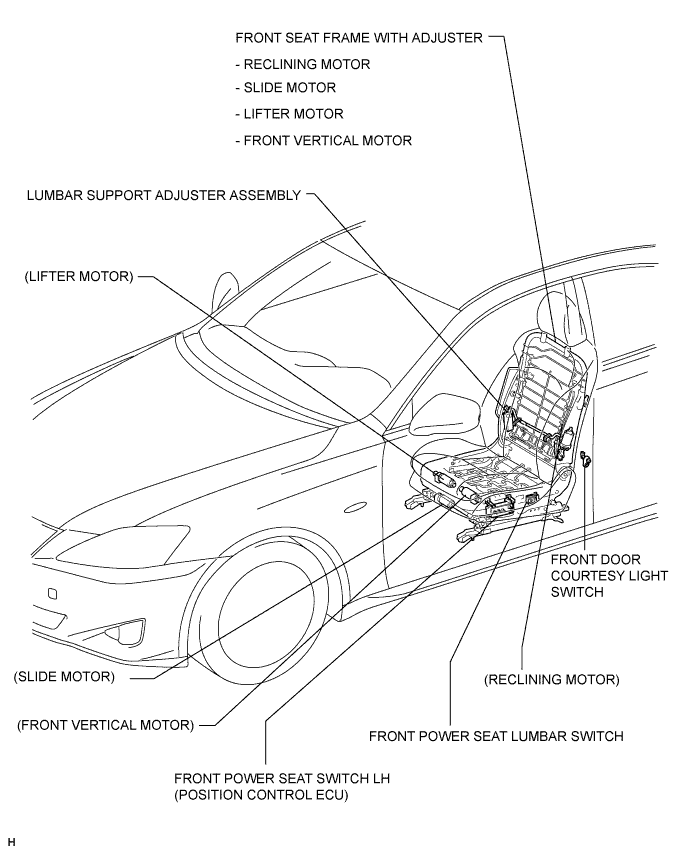

B126223E01

3 / 4

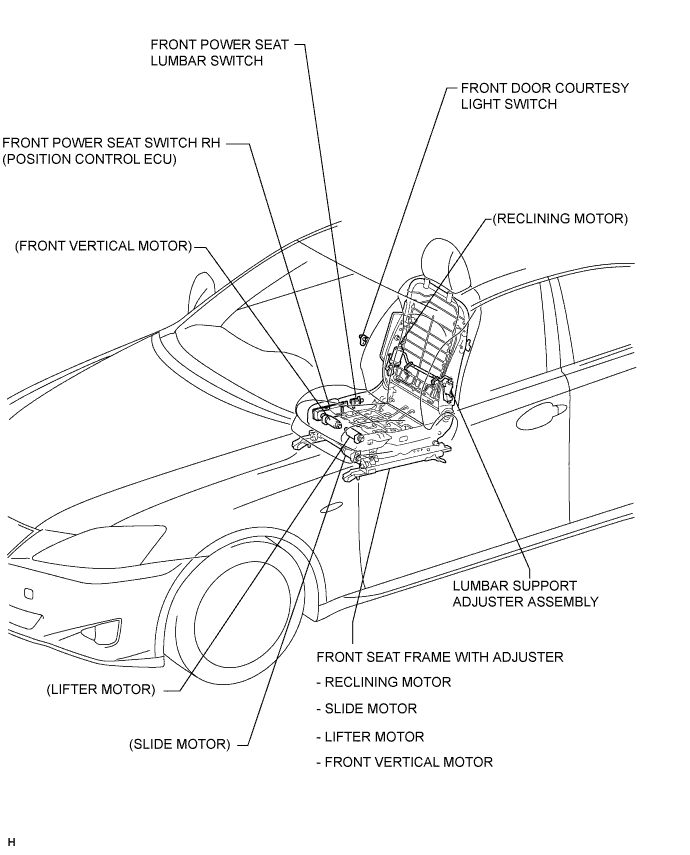

B126224E01

4 / 4
