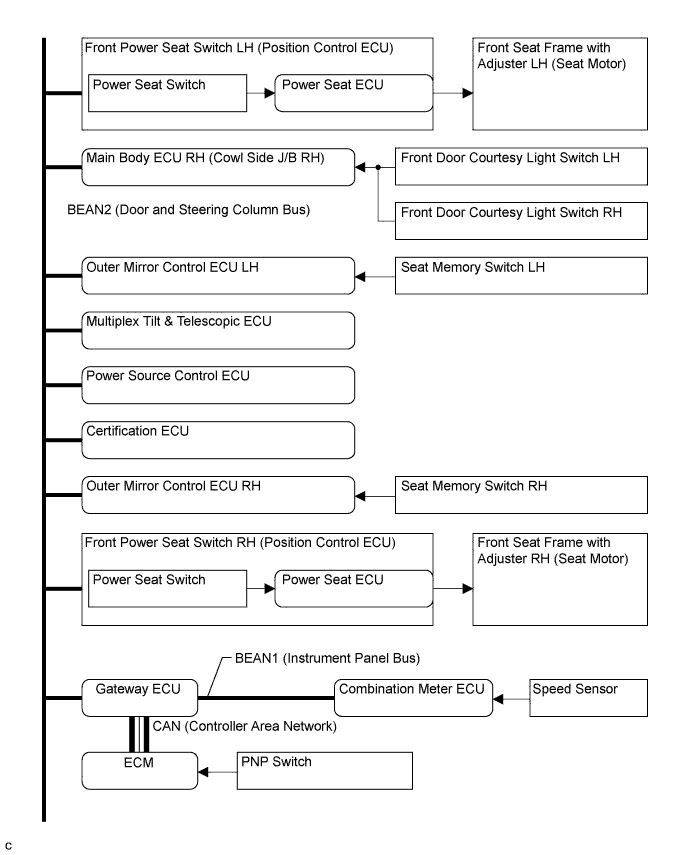

SYSTEM DIAGRAM
System information
| Sender |
Receiver |
Signal |
Line |
| Main Body ECU RH (Cowl Side J/B RH) |
Front Power Seat Switch LH (Position Control ECU) |
Wireless door unlock signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Front Power Seat Switch LH (Position Control ECU) |
Smart door unlock signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Front Power Seat Switch LH (Position Control ECU) |
Brake indicator ON signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Front Power Seat Switch RH (Position Control ECU) |
Brake indicator ON signal |
BEAN |
| Power Source Control ECU |
Front Power Seat Switch LH (Position Control ECU) |
Key code check signal |
BEAN |
| Combination Meter ECU |
Front Power Seat Switch LH (Position Control ECU) |
Vehicle speed signal |
BEAN |
| Combination Meter ECU |
Front Power Seat Switch RH (Position Control ECU) |
Vehicle speed signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Front Power Seat Switch LH (Position Control ECU) |
Key ID signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Front Power Seat Switch LH (Position Control ECU) |
Driver side door courtesy light switch signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Front Power Seat Switch LH (Position Control ECU) |
Engine switch on (IG) signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU LH |
M1 switch memory command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU LH |
M2 switch memory command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU LH |
M3 switch memory command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU LH |
M1 switch call command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU LH |
M2 switch call command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU LH |
M3 switch call command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Multiplex Tilt & Telescopic ECU |
M1 switch memory command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Multiplex Tilt & Telescopic ECU |
M2 switch memory command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Multiplex Tilt & Telescopic ECU |
M3 switch memory command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Multiplex Tilt & Telescopic ECU |
M1 switch call command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Multiplex Tilt & Telescopic ECU |
M2 switch call command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Multiplex Tilt & Telescopic ECU |
M3 switch call command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Multiplex Tilt & Telescopic ECU |
Tilt & telescopic call permission signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Multiplex Tilt & Telescopic ECU |
Tilt & telescopic call prohibit signal |
BEAN |
| Multiplex Tilt & Telescopic ECU |
Front Power Seat Switch LH (Position Control ECU) |
Tilt & telescopic call start signal |
BEAN |
| Multiplex Tilt & Telescopic ECU |
Front Power Seat Switch LH (Position Control ECU) |
Tilt & telescopic call completion signal |
BEAN |
| Outer Mirror Control ECU LH |
Front Power Seat Switch LH (Position Control ECU) |
SET switch ON signal |
BEAN |
| Outer Mirror Control ECU LH |
Front Power Seat Switch LH (Position Control ECU) |
M1 switch ON signal |
BEAN |
| Outer Mirror Control ECU LH |
Front Power Seat Switch LH (Position Control ECU) |
M2 switch ON signal |
BEAN |
| Outer Mirror Control ECU LH |
Front Power Seat Switch LH (Position Control ECU) |
M3 switch ON signal |
BEAN |
| ECM |
Front Power Seat Switch LH (Position Control ECU) |
Shift position P signal |
BEAN |
| Certification ECU |
Front Power Seat Switch LH (Position Control ECU) |
Memory call command signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Front Power Seat Switch RH (Position Control ECU) |
Passenger side door courtesy light switch signal |
BEAN |
| Main Body ECU RH (Cowl Side J/B RH) |
Front Power Seat Switch RH (Position Control ECU) |
Engine switch on (IG) Signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU RH |
M1 switch memory command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU RH |
M2 switch memory command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU RH |
M3 switch memory command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU RH |
M1 switch call command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU RH |
M2 switch call command signal |
BEAN |
| Front Power Seat Switch LH (Position Control ECU) |
Outer Mirror Control ECU RH |
M3 switch call command signal |
BEAN |
| Outer Mirror Control ECU RH |
Front Power Seat Switch RH (Position Control ECU) |
SET switch ON signal |
BEAN |
| Outer Mirror Control ECU RH |
Front Power Seat Switch RH (Position Control ECU) |
M1 switch ON signal |
BEAN |
| Outer Mirror Control ECU RH |
Front Power Seat Switch RH (Position Control ECU) |
M2 switch ON signal |
BEAN |
| Outer Mirror Control ECU RH |
Front Power Seat Switch RH (Position Control ECU) |
M3 switch ON signal |
BEAN |
| ECM |
Front Power Seat Switch RH (Position Control ECU) |
Shift position P signal |
BEAN |
