INSPECTION

Inspection


INSPECT SPIRAL CABLE

  1. If there are any defects as mentioned below, replace the spiral cable with a new one:

    1. Scratches, cracks, dents or chips on the connector or the spiral cable.

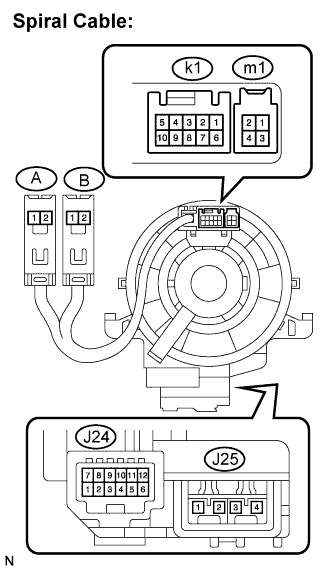

  1. C128776E01
    Inspect the spiral cable.

    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance
      Tester connection
      		 Condition
      		 Specified condition
      k1-1- m1-2
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-1- J24-8 (HO)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-2- J24-9 (SUP)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-3- J24-10 (SDN)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-4- J24-11 (DIST)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-5- J24-12 (IL+2)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-6- m1-4
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-6- J24-2 (ECC)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-7- J24-3 (DISP)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-8- J24-4 (EAU)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-9- J24-5 (AU2)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      k1-10- J24-6 (AU1)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      m1-1- J24-7 (R/N)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      m1-2- J24-8 (HO)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      m1-3- J24-1 (CCS)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      m1-4- J24-2 (ECC)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      A-1 (D-) - J25-2 (D-)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      A-2 (D+) - J25-1 (D+)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      B-1 (D2-) - J25-3 (D2-)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
      B-2 (D2+) - J25-4 (D2+)
      		 Center
      		 Below 1 Ω
      2.5 rotations to the left
      2.5 rotations to the right
