Lexus IS250 · Service Manual RESTRAINTS

INSTALLATION

Removal / installation


1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

  1. C122423E01
    Connect the 2 connectors and the 2 clamps to the front passenger airbag assembly.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.

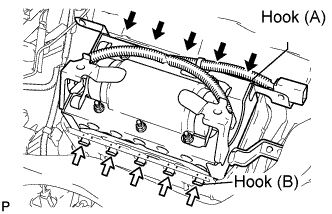

  1. C122419E01
    Engage the 5 hooks (A).

  1. Engage the 5 hooks (B) and install the front passenger airbag assembly on the instrument panel.

  1. C122421
    Install the 2 screws.


2. INSTALL SIDE DEFROSTER NOZZLE NO.2 DUCT

  1. B123369
    Install the side No. 2 defroster nozzle duct with the screw <F>.


3. INSTALL HEATER TO REGISTER NO.3 DUCT

  1. B123367
    Install the No. 3 heater to register duct with the 3 screws <F>.


4. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

HINT:
Refer to the procedures from "INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY" (Click here).


5. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY

  1. C122453E04
    Connect the connector.

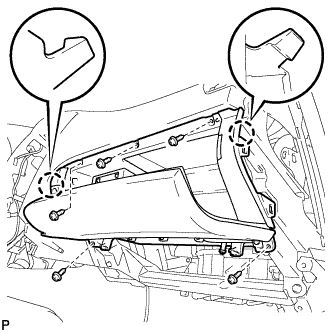

6. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

  1. B123356
    Connect the connectors.

  1. Engage the 2 claws.

  1. Install the glove compartment door assembly with the 5 screws.


7. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

  1. C122442
    Connect the connector.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.

  1. Install the front passenger side knee airbag assembly with the 3 bolts.

    Torque:
    10 N*m{ 102 kgf*cm , 7 ft.*lbf }


8. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

  1. B123382
    Engage the 4 clips and install the No. 2 instrument panel under cover sub-assembly.

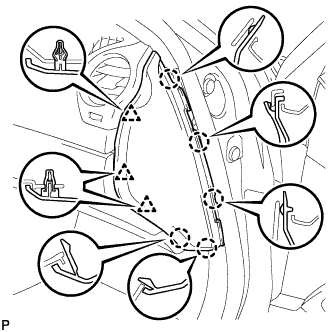

9. INSTALL INSTRUMENT SIDE PANEL RH

  1. B123380
    Engage the 5 claws and 3 clips, and then install the side instrument panel RH.


10. INSTALL FRONT DOOR OPENING TRIM COVER RH

  1. B123353
    Engage the 6 claws and install the front door opening trim cover RH.


11. INSTALL FRONT DOOR SCUFF PLATE (w/ Illumination)

12. INSTALL FRONT DOOR SCUFF PLATE (w/o Illumination)

13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

14. PERFORM INITIALIZATION

  1. Perform initialization (Click here).

    HINT:
    Some systems need initialization after reconnecting the cable to the negative battery terminal.


15. INSPECT SRS WARNING LIGHT

  1. Inspect the SRS warning light (Click here).

← REMOVALDISPOSAL →
