Lexus IS250 · Service Manual RESTRAINTS

REMOVAL

Removal / installation


1. PRECAUTION

CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing (Click here).


2. DISCONNECT BATTERY NEGATIVE TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.


3. REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination)

  1. B125381E01
    Put protective tape around the front door scuff plate.

  1. Using a moulding remover, disengage the 4 clips.

  1. B125382
    Disengage the 7 claws and remove the front door scuff plate LH.


4. REMOVE FRONT DOOR SCUFF PLATE (w/ Illumination)

  1. B125381E01
    Put protective tape around the front door scuff plate.

  1. Using a moulding remover, disengage the 4 clips.

  1. B125382
    Disengage the 7 claws and remove the front door scuff plate LH.

  1. Disconnect the connector.


5. REMOVE FRONT DOOR OPENING TRIM COVER

  1. B123347
    Disengage the 6 claws and remove the front door opening trim cover LH.


6. REMOVE INSTRUMENT SIDE PANEL

  1. B123348
    Using a moulding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel LH.


7. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

  1. B123355
    Using a moulding remover, disengage the 4 clips and remove the No. 2 instrument panel under cover sub-assembly.


8. REMOVE FRONT PASSENGER SIDE AIRBAG ASSEMBLY

  1. C122442
    Remove the 3 bolts and front passenger side knee airbag assembly.

  1. Disconnect the connector.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.


9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

  1. B123356
    Remove the 5 screws <E>.

  1. Disengage the 2 claws.

  1. Disconnect the connectors and remove the glove compartment door assembly.


10. DISCONNECT INSTRUMENT PANEL WIRE ASSEMBLY

  1. C122453E02
    Disconnect the connector.


11. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

HINT:
Refer to the procedures up to "REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY" (Click here).


12. REMOVE HEATER TO REGISTER NO.3 DUCT

  1. B123367
    Remove the 3 screws <F> and the No. 3 heater to register duct.


13. REMOVE SIDE DEFROSTER NOZZLE NO.2 DUCT

  1. B123369
    Remove the screw <F> and the side No. 2 defroster nozzle duct.


14. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

  1. C122421
    Remove the 2 screws.

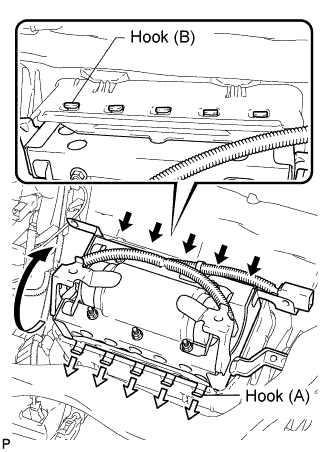

  1. C122420E02
    Disengage the 5 hooks (A).

  1. Disengage the 5 hooks (B) and remove the front passenger airbag assembly from the instrument panel.

  1. C122423E01
    Disconnect the 2 connectors and remove the 2 clamps.

  1. Remove the instrument panel wire assembly from the front passenger airbag assembly.

    NOTICE:
    When handling the airbag connector, take care not to damage the airbag wire harness.
