INSTALLATION

Removal / installation

1. INSTALL INJECTOR DRIVER

1. Install the injector driver with the bolt and 2 nuts.


   Torque:

   10 N*m{ 102 kgf*cm , 7 ft.*lbf }

   NOTICE:

   1. Be careful not to drop or strike the injector driver.

   2. The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.

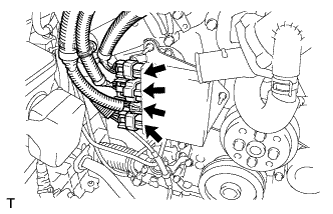

2. Connect the 4 connectors to the injector driver.


2. INSTALL NO. 1 ENGINE COVER

1. Install the No. 1 engine cover with the 3 clips.


3. INSTALL NO.1 INLET AIR CLEANER

1. Install the inlet air cleaner with the bolt.


   Torque:

   5.0 N*m{ 51 kgf*cm , 44 in.*lbf }

4. INSTALL COOL AIR INTAKE DUCT SEAL

1. Install the intake duct seal with the 11 clips.
