Lexus IS250 · Service Manual ENGINE

REMOVAL

Removal / installation


1. REMOVE COOL AIR INTAKE DUCT SEAL

  1. A127530
    Remove the 11 clips and intake duct seal.

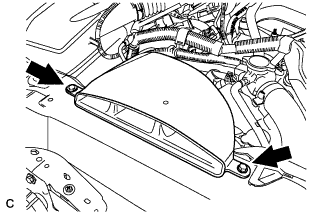

2. REMOVE NO.1 INLET AIR CLEANER

  1. A118345
    Remove the bolt, clip and inlet air cleaner.


3. REMOVE NO. 1 ENGINE COVER

  1. A120455
    Remove the 3 clips, then remove the No. 1 engine cover.

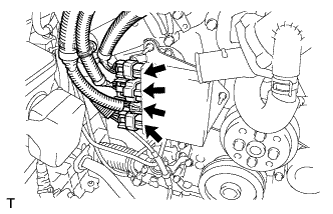

4. REMOVE INJECTOR DRIVER

  1. A122131
    Disconnect the 4 connectors from the injector driver.

  1. A103869E01
    Remove the bolt, 2 nuts and injector driver.

    NOTICE:
    Be careful not to drop or strike the injector driver.
