Yaw Rate Sensor Communication Stop Mode

DESCRIPTION

Detection Item	Symptom	Trouble Area
Yaw Rate Sensor Communication Stop Mode	"Yaw Rate/Deceleration Sensor" is not displayed on the" Communication Bus Check" screen of the intelligent tester Applies to "Yaw Rate Sensor Communication Stop Mode" in the "DTC COMBINATION TABLE"	Power source circuit of the yaw rate sensor Yaw rate sensor branch line or connector Yaw rate sensor

HINT:

"Yaw Rate/Deceleration Sensor" refers to the circuit that includes the yaw rate sensor.

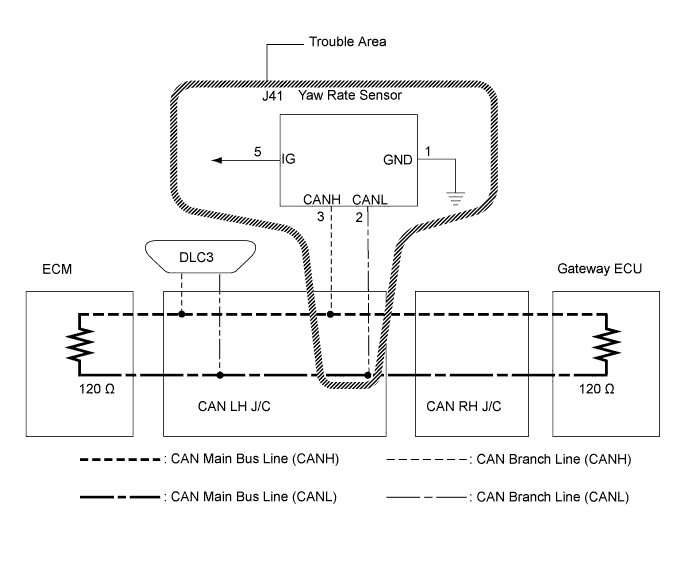

WIRING DIAGRAM

INSPECTION PROCEDURE

1. CHECK CAN BUS LINE FOR OPEN (YAW RATE SENSOR BRANCH LINE)

1. Turn the engine switch off.

2. Disconnect the yaw rate sensor connector (J41).

3. Measure the resistance according to the value(s) in the table below.

   Standard resistance:

   Tester Connection	Condition	Specified Value
   J41-3 (CANH) - J41-2 (CANL)	Engine switch off	54 to 69 Ω

NG	REPAIR OR REPLACE YAW RATE SENSOR BRANCH LINE OR CONNECTOR (CANH, CANL)

OK

2. CHECK WIRE HARNESS (IG, GND)

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance:

   Tester Connection	Condition	Specified Value
   J41-1 (GND) - Body ground	Always	Below 1 Ω

2. Measure the voltage according to the value(s) in the table below.

   Standard voltage:

   Tester Connection	Condition	Specified Value
   J41-5 (IG) - Body ground	Engine switch on (IG)	10 to 14 V

OK	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK
REPLACE YAW RATE AND ACCELERATION SENSOR
