B1206
Diagnostic trouble codes
DESCRIPTION
- This DTC is detected when communication between the multiplex network master switch (power window master switch) and gateway ECU stops for more than 10 seconds.
| DTC No. |
DTC Detection Condition |
Trouble Area |
| B1206 |
Multiplex network master switch communication stops |
|

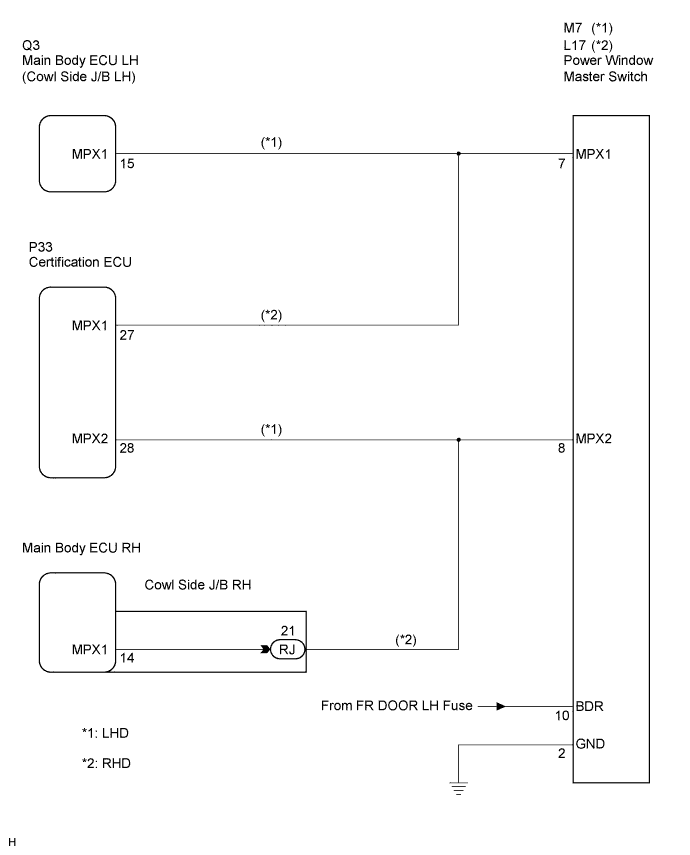

WIRING DIAGRAM


INSPECTION PROCEDURE
- HINT:
- When "+B of GND short malfunction of communication bus" DTCs (B1214 and B1215) are detected at the same time as "communication stop" DTC B1206, repair the "+B or GND short malfunction of communication bus" DTCs first.
| 1. INSPECT FUSE (FR DOOR LH) |
Remove the FR DOOR LH fuse from the main body ECU LH (cowl side J/B LH).
Measure the resistance of the fuse.
- Standard resistance:
- Below 1 Ω
|
|
||||
| OK | |
| 2. CHECK WIRE HARNESS (POWER WINDOW MASTER SWITCH - BATTERY AND BODY GROUND) |
Disconnect the M7 switch connector (for LHD).

Disconnect the L17 switch connector (for RHD).
Turn the engine switch on (IG).
Measure the voltage and resistance of the wire harness side connector.
- Standard voltage:
Tester Connection
Condition
Specified Condition
*1BDR (M7-10) - Body ground
*2BDR (L17-10) - Body ground
Always
10 to 14 V
- HINT:
- *1: LHD
- *2: RHD
- *1: LHD
- Standard resistance:
Tester Connection
Specified Connection
*1GND (M7-2) - Body ground
*2GND (L17-2) - Body ground
Below 1 Ω
- HINT:
- *1: LHD
- *2: RHD
- *1: LHD
|
|
||||
| OK | |
| 3. CHECK RESISTANCE OF COMMUNICATION LINE |
Disconnect the M7, Q3 and P33 ECU connectors (for LHD).
Disconnect the L17, RJ and P33 ECU connector (for RHD).

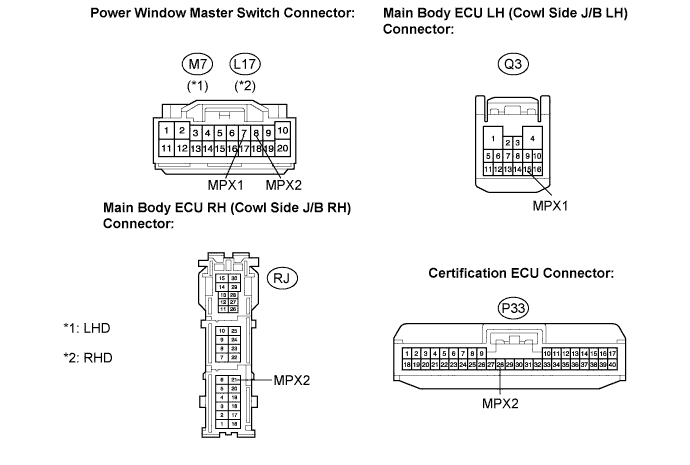

Measure the resistance between the specified terminals on the wire harness side connectors.
- Standard resistance:
Tester Connection
Specified Condition
*1MPX1 (M7-7) - MPX1 (Q3-15)
*2MPX1 (L17-7) - MPX1 (P33-27)
Below 1 Ω
*1MPX2 (M7-8) - MPX2 (P33-28)
*2MPX2 (L17-8) - MPX2 (RJ-21)
Below 1 Ω
- HINT:
- *1: LHD
- *2: RHD
- *1: LHD
- Result:
Result
Proceed to
Both are OK
A
One is OK
B
Both are NG
C
|
|
||||
|
|
||||
| A | ||
| ||
