ON-VEHICLE INSPECTION

Inspection


INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

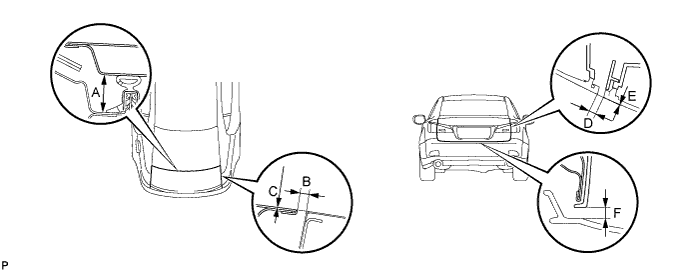

  1. Check that the clearance measurements of areas A to F are within each standard range.

    B125211E01

    Standard clearance:
    Area
    		 Measurement
    		 Area
    		 Measurement
    A
    		 21.6 to 24.6 mm (0.850 to 0.969 in.)
    		 D
    		 2.5 to 5.5 mm (0.098 to 0.217 in.)
    B
    		 1.9 to 4.9 mm (0.075 to 0.193 in.)
    		 E
    		 -1.9 to 2.1 mm (-0.075 to 0.083 in.)
    C
    		 -1.1 to 1.9 mm (-0.043 to 0.075 in.)
    		 F
    		 3.7 to 7.7 mm (0.146 to 0.303 in.)
