B2286
Diagnostic trouble codes
DESCRIPTION
This DTC is output when serial communication signals and multiplex communication signals in the circuit between the power source control ECU and engine control ECU (engine ECU) are inconsistent.- HINT:
- When the power source control ECU is replaced with a new one and the negative (-) battery terminal is connected, the power source mode becomes the IG-ON mode. When the battery is removed and reinstalled, the power source mode that was selected when the battery was removed is restored.
| DTC No. |
DTC Detection Condition |
Trouble Area |
| B2286 |
Serial communication signals and multiplex communication signals in the circuit between the power source control ECU and engine control ECU are inconsistent. |
|

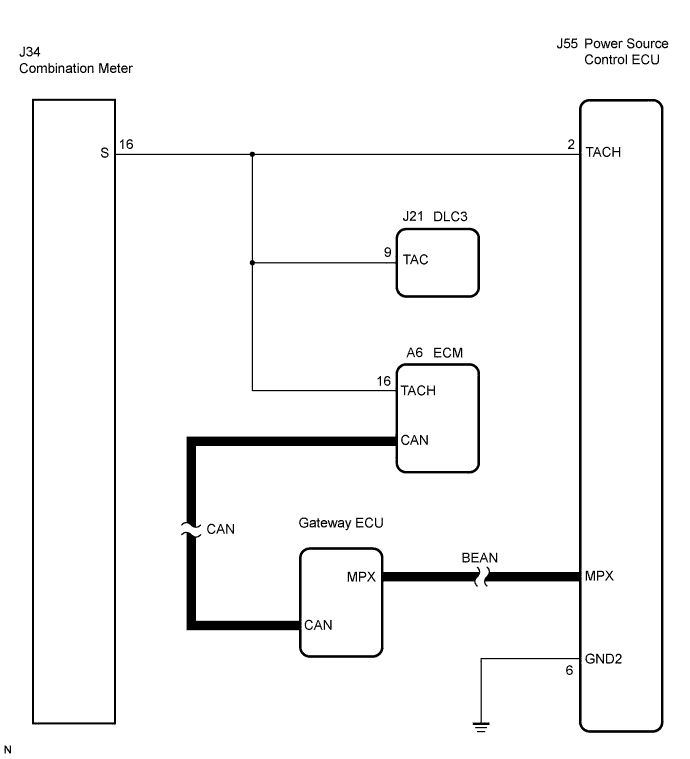

WIRING DIAGRAM


INSPECTION PROCEDURE
| 1. CHECK OPERATION OF TACHOMETER |
Run the engine and check if the function of the tachometer in the combination meter is normal.
- OK:
- Actual engine revolution speed and the revolution indicated on the tachometer are the same.
|
|
||||
| OK | |
| 2. CHECK DTC OUTPUT (MULTIPLEX NETWORK COMMUNICATION SYSTEM (BEAN)) |
Delete the DTC (Click here).
Check for the multiplex network communication system DTCs B1210, B1214 and B1215.
- HINT:
- If the DTCs for the multiplex network communication system malfunction are output, inspect those DTCs first (Click here).
- OK:
- No DTC is output.
|
|
||||
| OK | |
| 3. CHECK DTC OUTPUT (CAN COMMUNICATION SYSTEM) |
Delete the DTC (Click here).
Check for the CAN communication system DTC U0146.
- HINT:
- If the DTCs for the CAN communication system malfunction are output, inspect those DTCs first (LHD: Click here, RHD: Click here).
- OK:
- No DTC is output.
|
|
||||
| OK | |
| 4. CHECK CONNECTORS |
Check that the connectors are securely connected and the terminals are not deformed or loose.
- OK:
- The connectors are securely connected and the terminals are not deformed or loose.
|
|
||||
| OK | |
| 5. CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU - BODY GROUND) |
Disconnect the ECU connector.

Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection (Symbols)
Condition
Specified Condition
J55-6 (GND2) - Body ground
Always
Below 1 Ω
|
|
||||
| OK | |
| 6. CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU - ECM) |
Disconnect the A6 ECM connector.

Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester Connection (Symbols)
Condition
Specified Condition
J55-2 (TACH) - A6-16 (TACH)
Always
Below 1 Ω
J55-2 (TACH) or A6-16 (TACH) - Body ground
Always
10 kΩ or higher
- HINT:
- If the result of the inspection for a short circuit is not as specified, there may be a short in the ECU.
|
|
||||
| OK | |
| 7. READ VALUE OF INTELLIGENT TESTER |
Reconnect the connectors.
Connect the intelligent tester to the DLC3.
Turn the engine switch on (IG).
Check the DATA LIST for proper functioning of the engine running.
Power source control ECU: Item
Measurement Item/Display (Range)
Normal Condition
Diagnostic Note
E/G Cond
Engine condition/ STOP or RUN
STOP: Engine is stopped
RUN: Engine is running
-
- OK:
- STOP (engine is stopped) and RUN (engine is running) appear on the screen.
|
|
||||
| OK | |
| 8. RECHECK FOR DTC |
Delete the DTCs (Click here).
Check for DTCs again.
- OK:
- DTC B2286 is not output.
|
|
||||
| OK | ||
| ||
