Slip Indicator Light does not Come ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN and multiplex communications.
The SLIP indicator blinks during VSC and/or TRC operation.
When the system fails, the SLIP indicator comes on to warn the driver (Click here).
The SLIP indicator comes on when traction control is terminated by pressing the traction OFF switch.

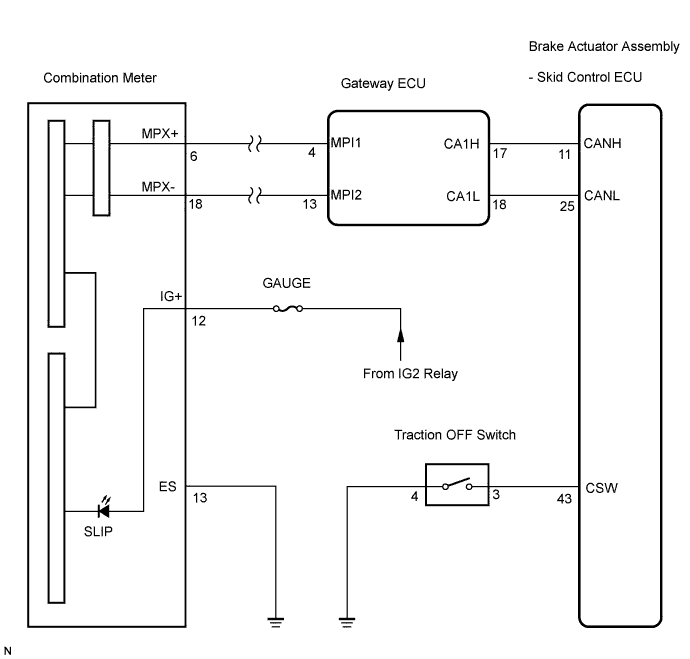

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:

When replacing the brake actuator assembly, perform zero point calibration (Click here).

1. CHECK CAN COMMUNICATION SYSTEM

1. Check if the CAN communication system DTC is output (Click here for LHD, or Click here for RHD).


   Result:

   Condition	Proceed to
   DTC is not output	A
   DTC is output	B

B	INSPECT CAN COMMUNICATION SYSTEM

A

2. CHECK MULTIPLEX COMMUNICATION SYSTEM

1. Check if the multiplex communication system DTC is output (Click here).


   Result:

   Condition	Proceed to
   DTC is not output	A
   DTC is output	B

B	INSPECT MULTIPLEX COMMUNICATION SYSTEM

A

3. CHECK SLIP INDICATOR LIGHT

1. Connect the intelligent tester to the DLC3.

2. Start the engine.

3. Select the "Slip Indicator Lamp" in the Active Test and operate the SLIP indicator light by the intelligent tester.

   ABS / VSC:

   Item (Display)	Vehicle Condition / Test Details	Diagnostic Note
   Slip Indicator Lamp	Turn SLIP indicator light ON / OFF	Observe combination meter

4. Check that "ON" and "OFF" of the SLIP indicator light are indicated on the combination meter when using the intelligent tester.

   OK:

   The SLIP indicator light turns on or off in accordance with the intelligent tester.


   HINT:

   If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part (Click here).

OK	REPLACE BRAKE ACTUATOR ASSEMBLY

NG

4. INSPECT COMBINATION METER ASSEMBLY

1. Turn the engine switch off.

2. Perform Active Test of the combination meter (meter CPU) using the intelligent tester (Click here).

   OK:

   The SLIP indicator light turns on or off in accordance with the intelligent tester.


   HINT:

   If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step (Click here).

NG	REPLACE COMBINATION METER ASSEMBLY

OK
REPLACE BRAKE ACTUATOR ASSEMBLY
