Stereo Component Amplifier Power Source Circuit

DESCRIPTION

This circuit provides power to the stereo component amplifier.

WIRING DIAGRAM

INSPECTION PROCEDURE

1. INSPECT STEREO COMPONENT AMPLIFIER

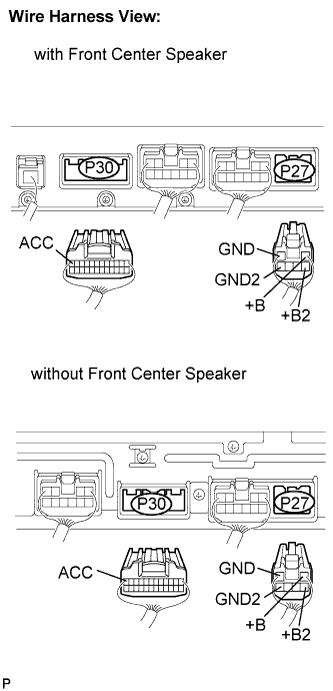

1. Disconnect the stereo component amplifier connectors.

2. Measure the resistance according to the values in the table below.

   Standard resistance:

   Tester connection	Condition	Specified condition
   GND - Body ground	Always	Below 1 Ω
   GND2 - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the values in the table below.

   Standard voltage:

   Tester connection	Condition	Specified condition
   +B - GND	Always	10 to 14 V
   +B2 - GND	Always	10 to 14 V
   ACC - GND	Engine switch on (ACC)	10 to 14 V

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
