Lexus IS250 · Service Manual TRANSMISSION

REMOVAL

Removal / installation


1. DISCONNECT CLUTCH LINE

  1. C125931E01
    Remove the bolt and separate the clutch line clamp.

  1. Using SST, disconnect the clutch line.

    SST
    09023-00101

    HINT:
    Use a container to catch the fluid.


2. REMOVE CLUTCH TUBE

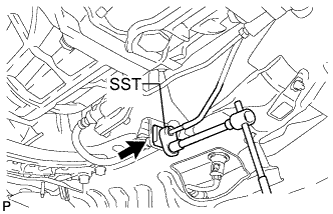

  1. C116469E01
    Using SST, disconnect the clutch line.
    SST
    09023-00101

    HINT:
    Use a container to catch the fluid.

  1. Remove the clip and disconnect the clutch tube.

    HINT:
    Use a container to catch the fluid.

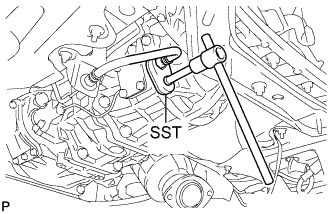

  1. C116471E01
    Using SST, remove the clutch tube.
    SST
    09023-12701

    HINT:
    Use a container to catch the fluid.


3. REMOVE CLUTCH ACCUMULATOR ASSEMBLY

  1. C125926
    Remove the 2 bolts and clutch accumulator.
