Lexus IS250 · Service Manual BODY

INSTALLATION

Removal / installation


1. INSTALL FRONT FLOOR FOOTREST LH (for LHD)

  1. B125414
    Install the 2 clips on the front floor footrest LH.

  1. B125415
    Install the front floor footrest LH onto the 2 studs that protrude from the vehicle floor.


2. INSTALL FRONT DOOR OPENING TRIM COVER LH (for LHD)

  1. B125383
    Engage the 4 claws and install the front door opening trim cover LH.


3. INSTALL FRONT DOOR SCUFF PLATE LH (for LHD)

  1. B125406
    Engage the 4 clips.

  1. B125382
    Engage the 7 claws, and install the front door scuff plate LH.


4. INSTALL FRONT FLOOR FOOTREST RH (for RHD)

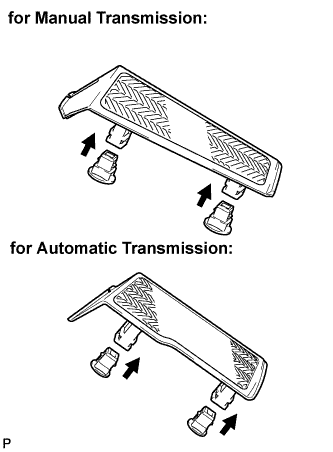

  1. B128488E01
    Install the 2 clips on the front floor footrest RH.

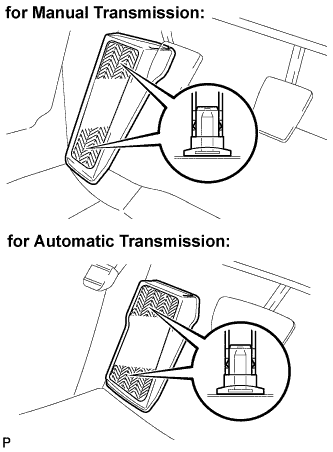

  1. B128489E01
    Install the front floor footrest RH onto the 2 studs that protrude from the vehicle floor.
