REMOVAL

Removal / installation


1. REMOVE FRONT DOOR SCUFF PLATE LH (for LHD)

  1. B125381E01
    Put protective tape around the front door scuff plate.

  1. Using a moulding remover, disengage the 4 clips.

  1. B125382
    Disengage the 7 claws and remove the front door scuff plate LH.


2. REMOVE FRONT DOOR OPENING TRIM COVER LH (for LHD)

  1. B125383
    Disengage the 4 claws and remove the front door opening trim cover LH.


3. REMOVE FRONT FLOOR FOOTREST LH (for LHD)

  1. B125413
    Using a moulding remover, disengage the 2 clips and remove the front floor footrest LH.

  1. Turn back the floor carpet in order to remove the 2 clips.


4. REMOVE FRONT FLOOR FOOTREST RH (for RHD)

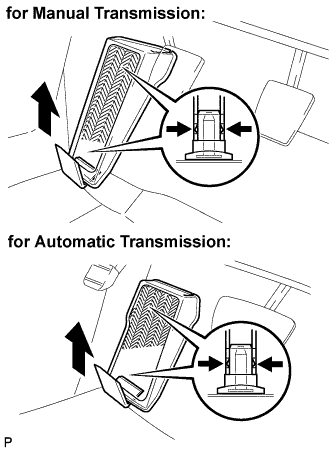

  1. B128487E01
    Using a moulding remover, disengage the 2 clips and remove the front floor footrest RH.

  1. Remove the 2 clips.
