Lexus IS250 · Service Manual BODY

DISASSEMBLY

Removal / installation


1. REMOVE CONSOLE BOX CUP HOLDER SUB-ASSEMBLY

  1. B116751
    Remove the console box cup holder sub-assembly.

    NOTICE:
    When removing the console box cup holder sub-assembly, do not hold the center part of the sub-assembly in order to prevent the cup holder from breaking.


2. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

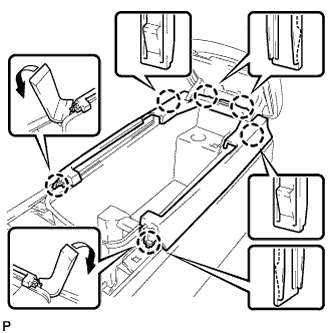

  1. B123607
    Using a moulding remover, disengage the 2 claws.

  1. Disengage the 4 claws and remove the front upper console panel garnish.


3. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

  1. B116755
    Remove the 2 screws.

  1. B116756
    Open the console compartment door lock sub-assembly in the direction indicated by the arrow to remove it.


4. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

  1. B116758E01
    While pushing down on the lock using a screwdriver with its tip taped, slide the console door in the direction shown by the arrow to remove it.


5. REMOVE CONSOLE COMPARTMENT DOOR CUSHION

  1. Remove the 2 console compartment door cushions from the console box.


6. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

  1. B123606
    Disengage the 2 claws and remove the console box illumination light assembly.


7. REMOVE POWER OUTLET SOCKET ASSEMBLY

  1. E003722E10
    Rotate the socket to disengage the notch.

  1. B108949
    Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover.

  1. Remove the socket from the cover.


8. REMOVE POWER POINT SOCKET COVER

9. REMOVE AUDIO TERMINAL

  1. E123219E01
    Disengage the connector clamp.

  1. Disengage the 2 claws and remove the audio terminal.
