Lexus IS250 · Service Manual BODY

REASSEMBLY

Removal / installation


1. INSTALL AUDIO TERMINAL

  1. E123219E01
    Engage the 2 claws and install the audio terminal.

  1. Connect the connector clamp.


2. INSTALL POWER POINT SOCKET COVER

3. INSTALL POWER OUTLET SOCKET ASSEMBLY

  1. B110252
    Align the protrusion on the backside of the socket with the groove of the cover. Then push the socket into the cover.

  1. Connect the connector.


4. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

5. INSTALL CONSOLE COMPARTMENT DOOR CUSHION

6. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

  1. B116759
    Aligning the inside groove of the console compartment door with the console compartment door hinge, slide the console compartment door sub-assembly and install it.


7. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

  1. B116755
    Install the console compartment door lock sub-assembly with the 2 screws.


8. INSTALL FRONT UPPER CONSOLE PANEL GARNISH

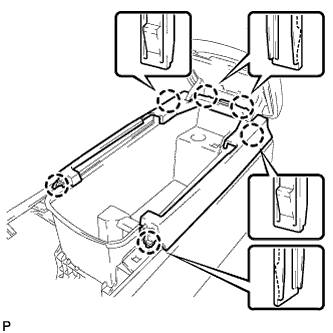

  1. B123608
    Engage the 6 claws and install the front upper console panel garnish.


9. INSTALL CONSOLE BOX CUP HOLDER SUB-ASSEMBLY

  1. B116752
    Install the console box cup holder sub-assembly.
