Lexus IS250 · Service Manual ENGINE

INSTALLATION

Removal / installation


1. INSTALL ENGINE SWITCH

  1. A123779
    Attach the 2 claws to install the switch.

  1. Connect the switch connector.


2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)

  1. Connect each connector.

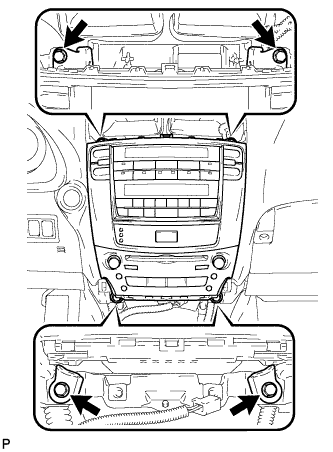

  1. E119043
    Install the integration control panel w/ radio receiver assembly with the 4 bolts.


3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)

  1. Connect each connector.

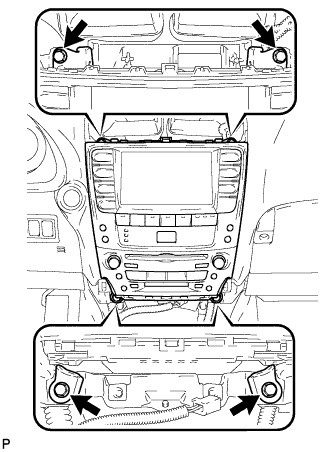

  1. E119030
    Install the the multi-display w/ radio receiver assembly with the 4 bolts.


4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL

  1. B123346
    Engage the 4 claws and install the center lower instrument cluster finish panel.


5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

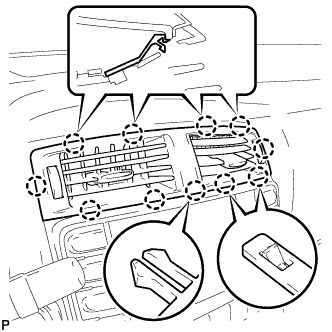

  1. B123385
    Connect the connectors.

  1. Engage the 11 claws and install the No. 3 instrument panel register assembly.


6. INSTALL CONSOLE BOX

  1. B123342
    Engage the 2 claws and 2 clips.

  1. B116791
    Install the 2 bolts <C>.

  1. B123339
    Install the 2 bolts <C>.

  1. Connect the connector.

  1. B123341E01
    Connect the connectors.

  1. Engage the 2 clamps.

  1. Install the 2 bolts <C>.


7. INSTALL CONSOLE BOX REGISTER ASSEMBLY

  1. B123605
    Engage the 2 claws and 4 clips, and then install the console box register assembly.

  1. Install the rear ash receptacle assembly.


8. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY

  1. B116700E01
    Connect the connectors.

  1. Insert the protruding parts of the front ash receptacle sub-assembly into the 2 guide holes as shown in the illustration.

  1. B116698
    Install the front ash receptacle sub-assembly with the 2 screws <F>.


9. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)

  1. B123400
    Engage the 6 clips.

  1. B123395
    Close the snap.


10. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)

  1. B123398
    Engage the 7 claws and 2 clips.

  1. B123396
    Close the snap.


11. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)

  1. B123386
    Connect the connectors.

  1. Engage the 8 clips and install the console panel sub-assembly.


12. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)

  1. B123388
    Engage the claw and 2 clips, and then install the upper No. 2 console panel garnish.


13. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)

  1. B123387
    Engage the claw and 2 clips, and then install the upper No. 1 console panel garnish.


14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
