Lexus IS250 · Service Manual BODY ELECTRICAL

INSTALLATION

Removal / installation


1. INSTALL COMBINATION METER GLASS

  1. E119845
    Engage the 9 claws and install the combination meter glass.


2. INSTALL COMBINATION METER ASSEMBLY

  1. E112295E01
    Position the combination meter assembly on the steering column as shown in the illustration.

    NOTICE:
    Do not damage the instrument panel safety pad or combination meter assembly.

  1. Connect the connectors.

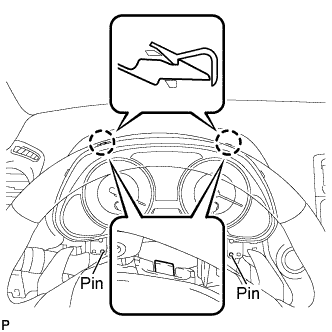

  1. E112296E01
    Engage the 2 positioning pins of the combination meter assembly.

  1. Engage the 2 claws and install the combination meter assembly.

  1. Remove the protective tape.


3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

  1. E119611
    Engage the claw and install the windshield wiper switch assembly as shown in the illustration.

  1. Connect the 2 connectors.


4. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

  1. E112247
    Install the 2 clips.

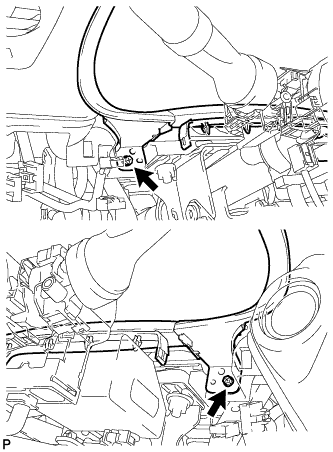

  1. E112290
    Install the instrument cluster finish panel sub-assembly with the 2 screws.


5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

  1. B123350
    Connect the connectors.

  1. Engage the 7 clips and install the lower instrument panel finish panel sub-assembly.


6. INSTALL SIDE INSTRUMENT PANEL LH

  1. B123384
    Engage the 5 claws and 3 clips, and then install the side instrument panel LH.


7. INSTALL FRONT DOOR OPENING TRIM COVER LH

  1. B123347
    Engage the 6 claws and install the front door opening trim cover LH.


8. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)

  1. B125406
    Engage the 4 clips.

  1. B125382
    Engage the 7 claws, and install the front door scuff plate LH.


9. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)

  1. Connect the connector.

  1. B125406
    Engage the 4 clips.

  1. B125382
    Engage the 7 claws, and install the front door scuff plate LH.


10. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)

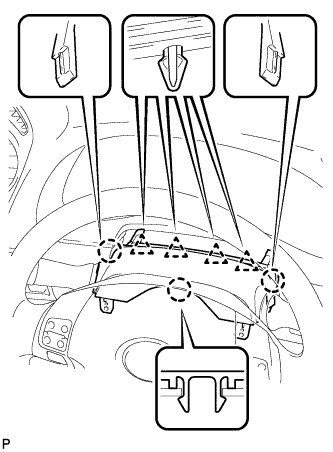

  1. E119853
    Engage the 3 claws and the 4 clips.

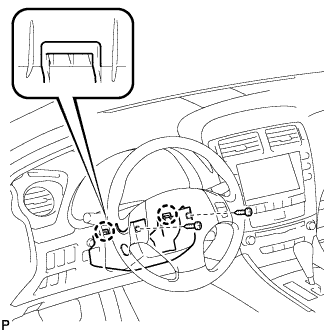

  1. E119617
    Engage the 2 claws and install the 2 screws to the steering column cover.


11. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)

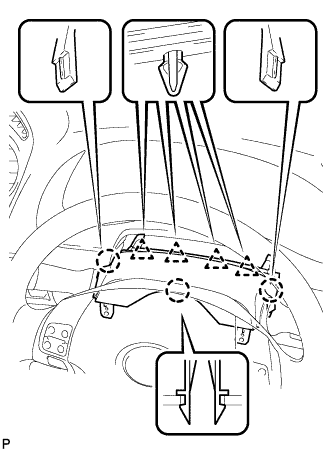

  1. E119615
    Engage the 3 claws and the 4 clips.

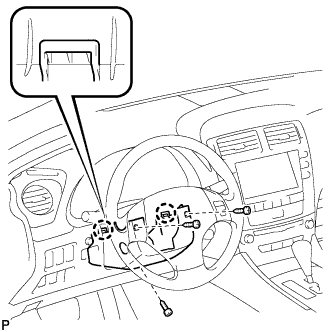

  1. E119618
    Engage the 2 claws and install the 3 screws to the steering column cover.

    NOTICE:
    Do not damage the tilt and telescopic switch.


12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

13. PERFORM INITIALIZATION

NOTICE:
Some systems need initialization after reconnecting the cable to the negative battery terminal (Click here).
