Lexus IS250 · Service Manual BODY ELECTRICAL

INSTALLATION

Removal / installation


1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

  1. E119611
    Engage the claw and install the windshield wiper switch assembly as shown in the illustration.

  1. Connect the 2 connectors.


2. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)

  1. E119853
    Engage the 3 claws and the 4 clips.

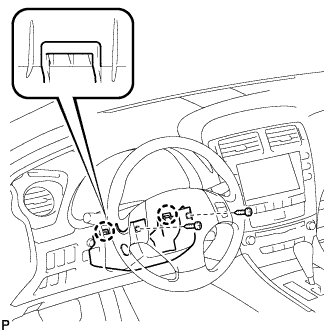

  1. E119617
    Engage the 2 claws and install the 2 screws to the steering column cover.


3. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)

  1. E119615
    Engage the 3 claws and the 4 clips.

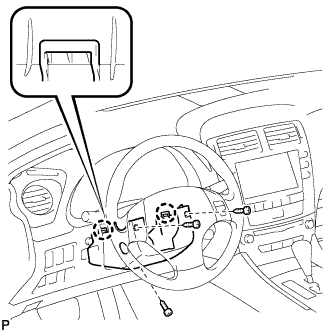

  1. E119618
    Engage the 2 claws and install the 3 screws to the steering column cover.

    NOTICE:
    Do not damage the tilt and telescopic switch.
