REMOVAL

Removal / installation


1. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic)

  1. E119612
    The steering wheel assembly is turned to the right and remove the screw as shown in the illustration.

  1. E119613
    The steering wheel assembly is turned to the left and remove the screw as shown in the illustration.

  1. E119614

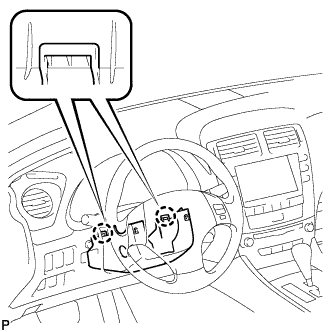

    Disengage the 2 claws and remove the steering column cover lower.

  1. E119853

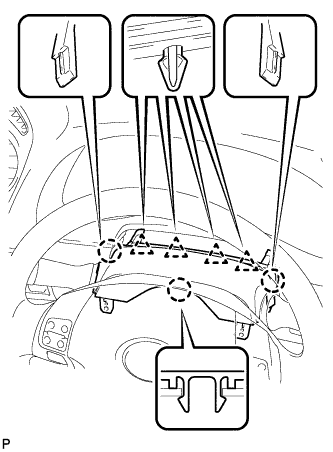

    Disengage the 4 clips and 3 claws to remove the steering column cover upper.


2. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)

  1. E119612
    The steering wheel assembly is turned to the right and remove the screw as shown in the illustration.

  1. E119613
    The steering wheel assembly is turned to the left and remove the screw as shown in the illustration.

  1. E119616

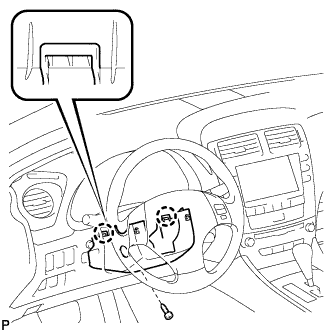

    Disengage the 2 claws and remove the screw and the steering column cover lower.

  1. E119615

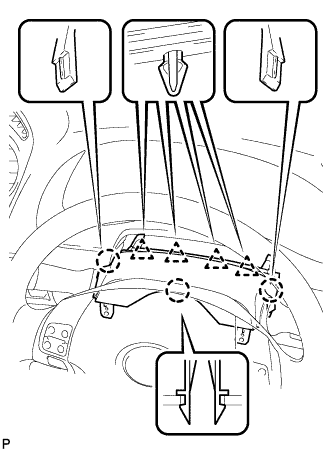

    Disengage the 4 clips and 3 claws to remove the steering column cover upper.


3. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

  1. E119610
    Disconnect the 2 connectors.

  1. Disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.

    NOTICE:
    If the claw is pushed with excessive force, it may break.
