DISASSEMBLY
Removal / installation
| 1. REMOVE AIR OUTLET CONTROL SERVO MOTOR |
Disconnect the connector.
Remove the 3 screws and air outlet control servo motor.
| 2. REMOVE AIR MIX CONTROL SERVO MOTOR |
Remove the 4 clamps and connector, and disconnect the wire harness.
Remove the 3 screws and heater piping cover.
Remove the 3 screws and air mix control servo motor.
| 3. REMOVE COOLER EXPANSION VALVE |
Remove the packing from the air conditioning tube assembly.
Using a hexagon wrench 4 mm, remove the 2 hexagon bolts and air conditioning tube assembly.
Remove the 2 O-rings from the air conditioning tube assembly.
Remove the cooler expansion valve from the No. 1 cooler evaporator sub-assembly.
| 4. REMOVE AIR CONDITIONING HARNESS ASSEMBLY |

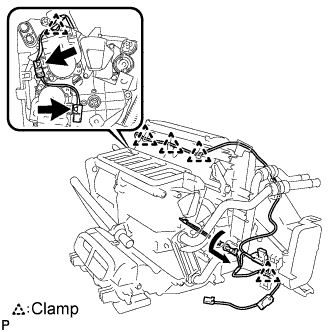

Remove the 2 connectors and 5 clamps, and then disconnect the wire harness.
Remove the air conditioning harness assembly as shown in the illustration.
| 5. REMOVE AIR OUTLET CONTROL SERVO MOTOR |

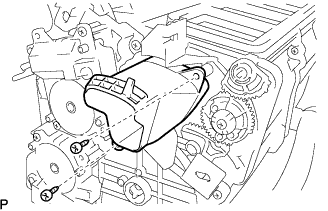

Remove the 2 screws and the air duct.
Remove the 4 screws and the servo motor plate.
Remove the 2 screws.
Release the claw and remove the air outlet control servo motor from the servo motor plate.
| 6. REMOVE AIR MIX CONTROL SERVO MOTOR |
Remove the 2 screws.
Release the claw and remove the air mix control servo motor from the servo motor plate.
| 7. REMOVE HEATER RADIATOR UNIT SUB-ASSEMBLY |
Remove the screw and clamp.
Remove the heater radiator unit sub-assembly.
| 8. REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
Remove the 5 screws.
Release the 3 claws and remove the air duct.
Remove the No. 1 cooler evaporator sub-assembly from the air duct.
Remove the 2 O-rings from the No. 1 cooler evaporator sub-assembly.
