INSTALLATION
Removal / installation
| 1. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Standard) |

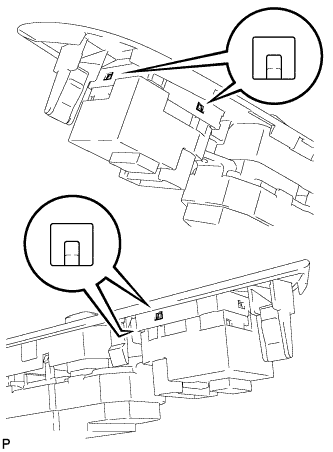

Engage the 4 claws to install the outer mirror switch assembly.
| 2. INSTALL OUTER MIRROR SWITCH ASSEMBLY (for Wood Panel) |
Engage the 4 claws to install the outer mirror switch assembly.
Install the outer mirror switch assembly with the front door armrest base cover lower LH with the 2 screws.
| 3. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY |
Connect each connector.

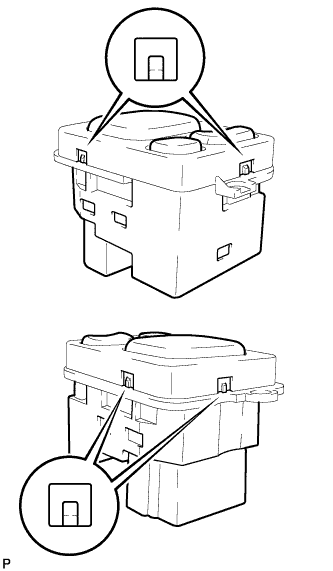

Engage the 4 claws and 2 clips, and install the power window regulator master switch assembly.
| 4. INITIALIZE POWER WINDOW CONTROL SYSTEM |
