REMOVAL

Removal / installation


1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE COOL AIR INTAKE DUCT SEAL

  1. B125512

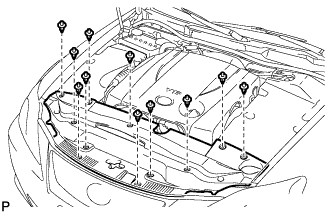

    Using a clip remover, remove the 11 clips and cool air intake duct seal.


3. REMOVE ENGINE ROOM SIDE COVER

  1. E120491
    Using a clip remover, remove the 4 clips.

  1. Disengage the nut and remove the engine room side cover.


4. REMOVE WASHER HOSE

  1. E120522
    Remove the bolt and washer hose.


5. REMOVE DISCHARGE HEADLIGHT BULB

  1. E120523

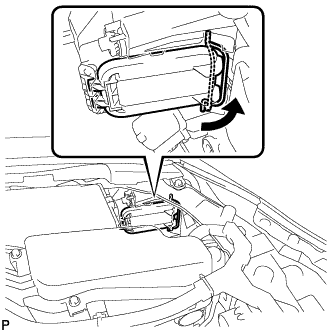

    Remove the headlight socket cover as shown in the illustration.

  1. Remove the headlight gasket.

    NOTICE:
    After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.

  1. E120524

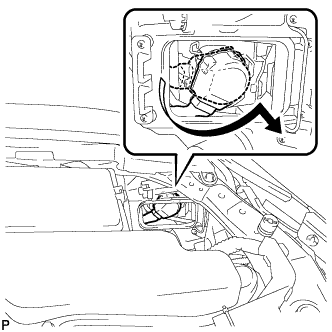

    Separate the light control ECU socket as shown in the illustration.

  1. E120525E01

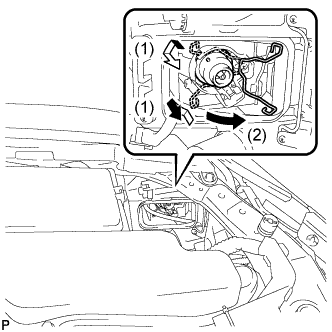

    Release the set spring and remove the discharge headlight bulb as shown in the illustration.

    NOTICE:
    After the discharge headlight bulb is replaced, make sure that it comes on. Then, reinstall all the parts that were removed to replace the bulb.
