PARTS LOCATION

Parts location

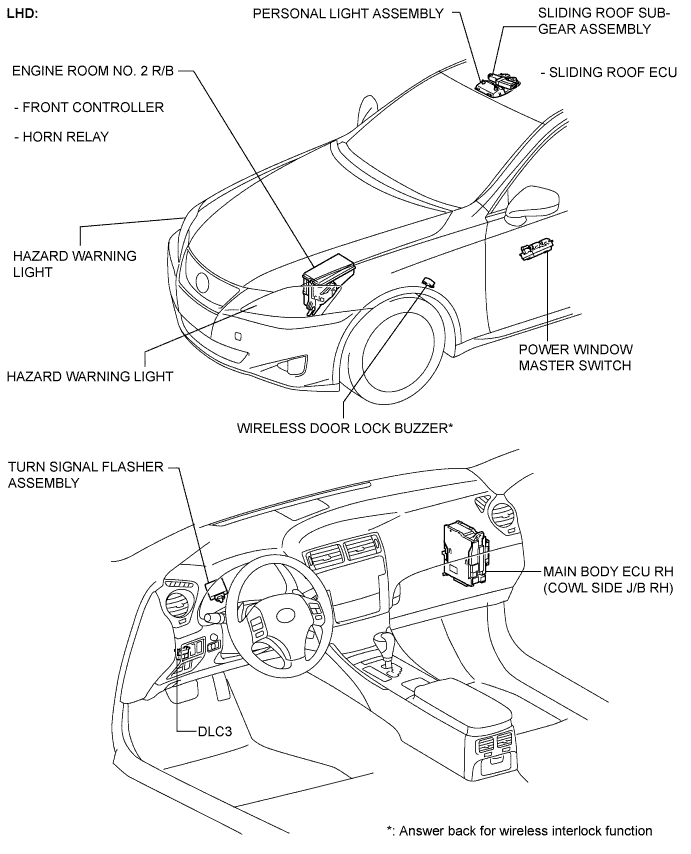

B128366E01

1 / 4

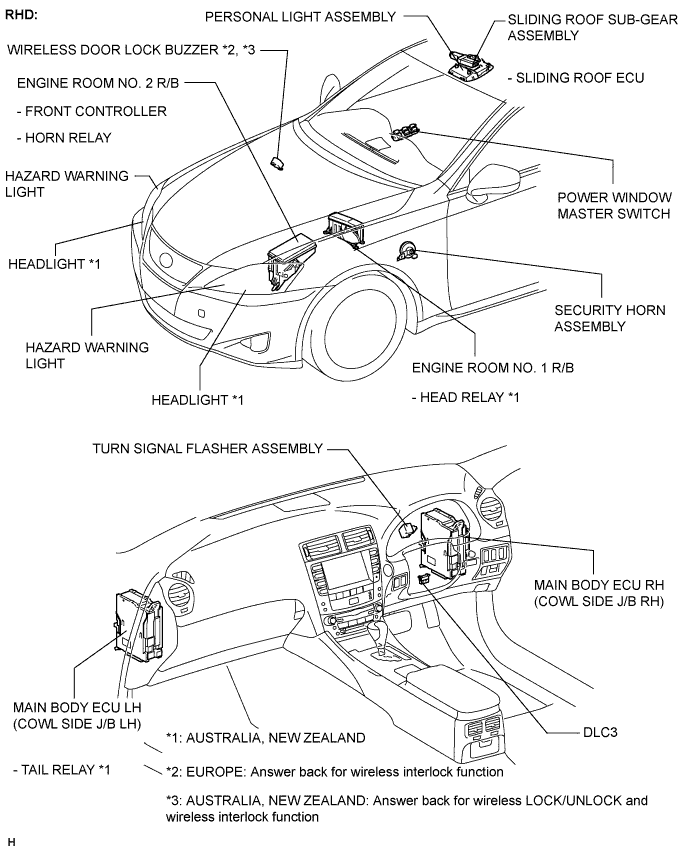

B128381E01

2 / 4

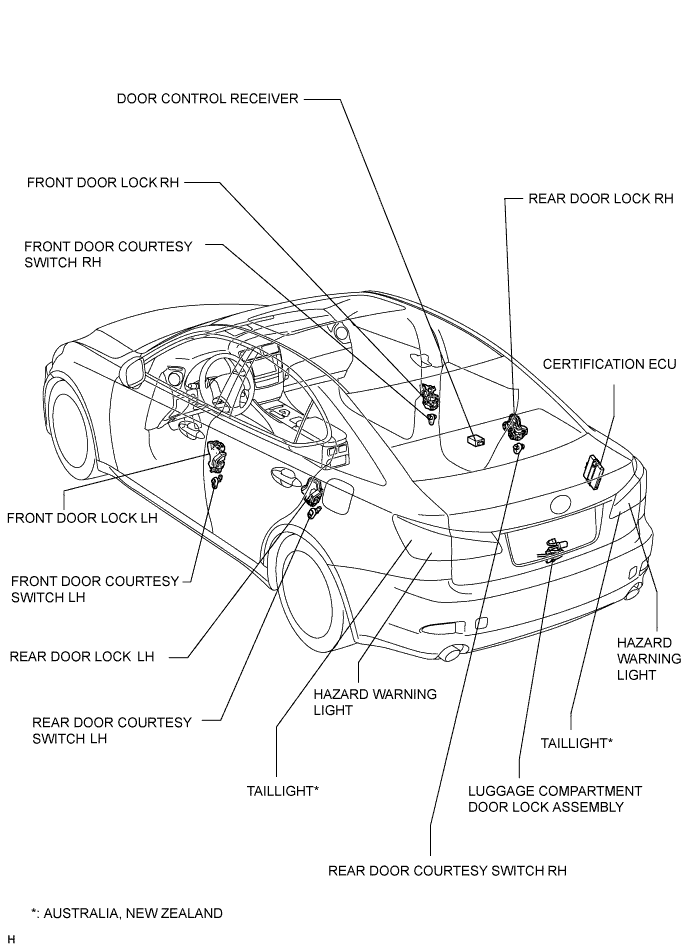

B125082E02

3 / 4

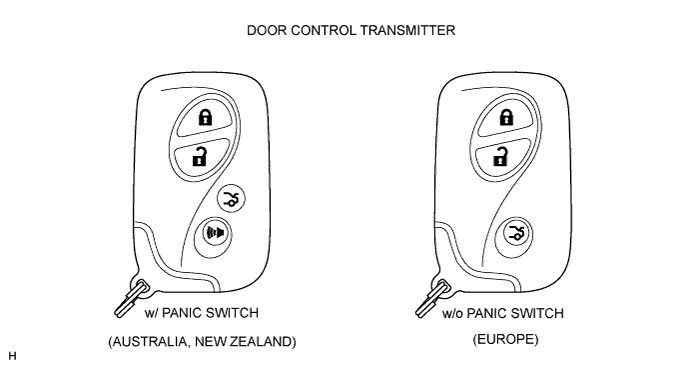

B128376E01

4 / 4
