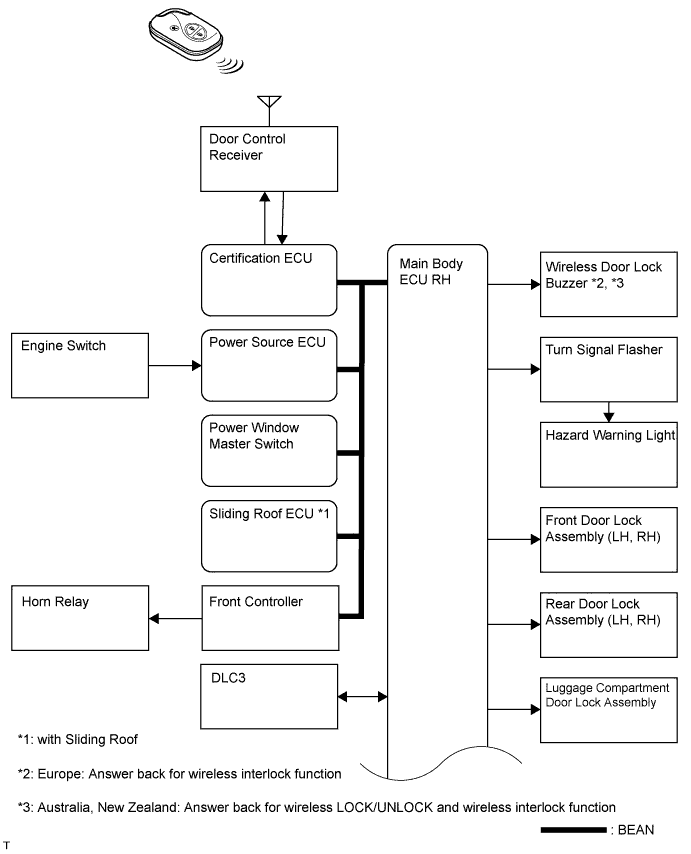

SYSTEM DIAGRAM
System information
| Transmitting ECU (Transmitter) |
Receiving ECU (Receiver) |
Signal |
Line |
| Certification ECU |
Main body ECU RH |
IG relay operating states |
BEAN |
| Power source ECU |
Main body ECU RH |
Engine switch signal |
BEAN |
| Main body ECU RH |
Power window master switch |
Power window open signal |
BEAN |
| Power window master switch |
Sliding roof ECU |
Sliding roof open signal |
BEAN |
| Main body ECU RH |
Front controller |
Vehicle horn sound request |
BEAN |
