Ignition Switch Circuit

Circuit diagnosis

DESCRIPTION

When the engine switch is turned on (IG), positive (+) battery voltage is applied to the main body ECU RH (cowl side J/B RH). When battery positive (+) voltage is applied to terminal IG of the main body ECU (cowl side J/B RH) while the theft deterrent system is operating, the warning stops.

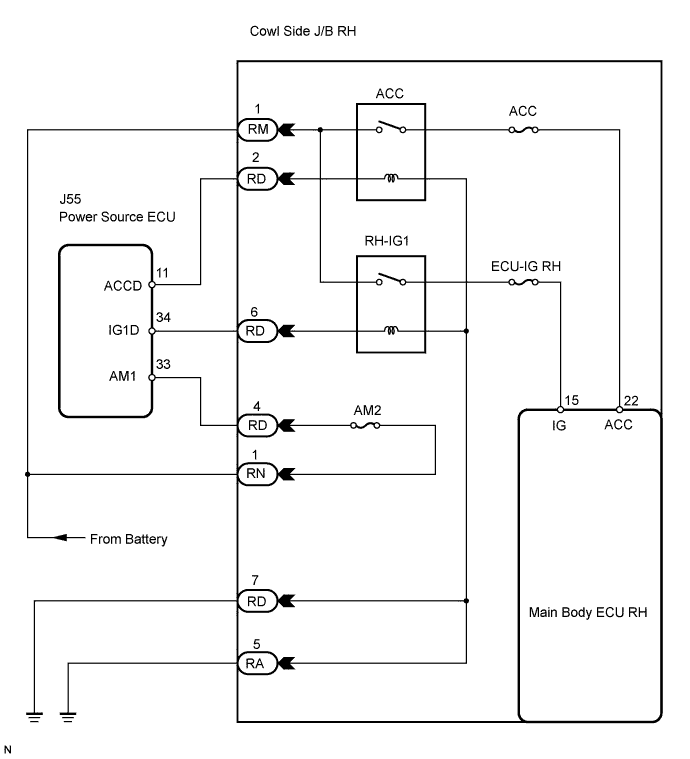

WIRING DIAGRAM

INSPECTION PROCEDURE

1. CHECK DTC

Delete DTC (Click here).

Check the DTC B2271, B2272 and B2274.

Result
Proceed To

No DTC is output
OK

Any of DTCs is output
NG

GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

Result	Proceed To
No DTC is output	OK
Any of DTCs is output	NG
