INSTALLATION

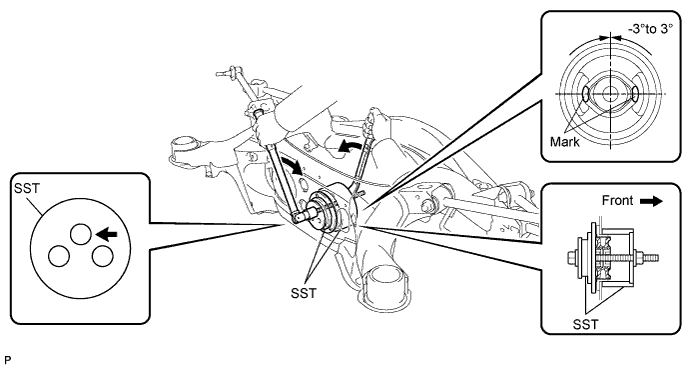

Using SST, install a new No. 1 rear differential mount cushion.

SST

09570-24011
09316-12010

NOTICE:

1. Temporarily install the mount cushion to the member in order to prevent it from tilting and install the SST.

2. Be sure to use the SST with the correct combination.

3. Make sure that the SST contacts the entire circumference of the mount cushion.

4. Be sure to install the mount cushion so that the identification rubber mark is at the bottom.

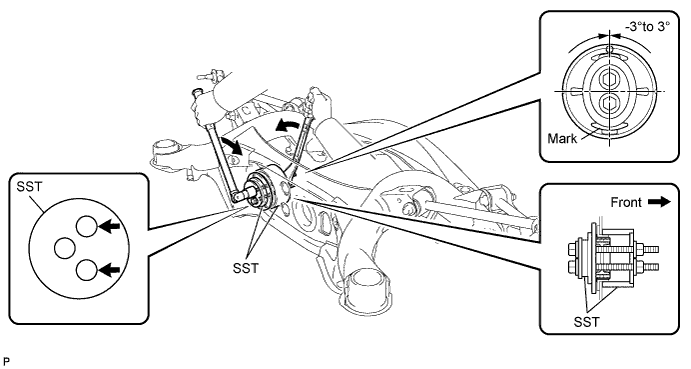

Using SST, install a new No. 2 rear differential mount cushion.

SST

09570-24011
09316-12010

NOTICE:

1. Temporarily install the mount cushion to the member in order to prevent it from tilting and install the SST.

2. Be sure to use the SST with the correct combination.

3. Make sure that the SST contacts the entire circumference of the mount cushion.

4. Be sure to install the mount cushion so that the identification rubber marks are at the right and left.
