Lexus IS250 · Service Manual DRIVE LINE

REMOVAL

Removal / installation


1. REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY
(Click here)

2. REMOVE NO. 1 REAR DIFFERENTIAL MOUNT CUSHION

  1. Using SST, remove the No. 1 rear differential mount cushion.

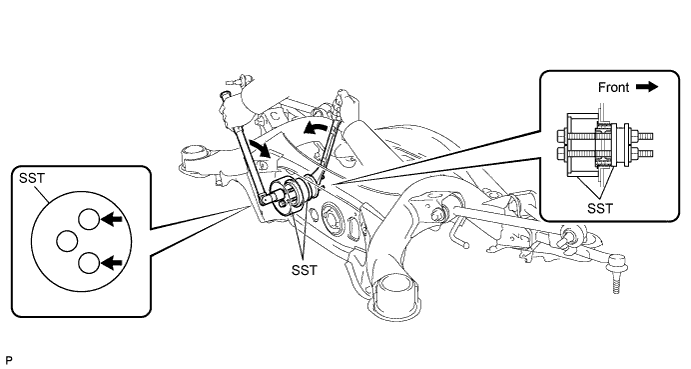

    C127855E01

    SST
    09570-24011
    09316-12010

    NOTICE:
    1. Do not bring SST into contact with the sub-frame.
    2. Do not slant the bolts of SST.
    3. Set the SST in the correct direction.
    4. Screw the 2 bolts of SST equally into the 2 holes of the rear differential mount.


3. REMOVE NO. 2 REAR DIFFERENTIAL MOUNT CUSHION

  1. Using SST, remove the No. 2 rear differential mount cushion.

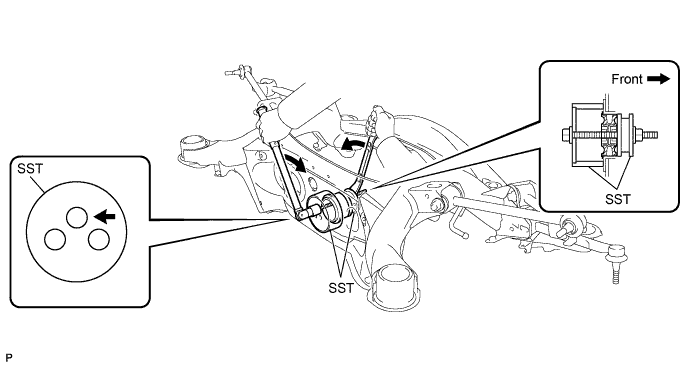

    C127856E01

    SST
    09570-24011
    09316-12010

    NOTICE:
    1. Do not bring SST into contact with the sub-frame.
    2. Do not slant the bolt of SST.
    3. Set the SST in the correct direction.

← COMPONENTSINSTALLATION →
