Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter
Circuit diagnosis
DESCRIPTION
The stereo jack adapter sends an external device sound signal to the radio receiver through this circuit.The sound signal that has been sent is amplified by the stereo component amplifier, and then is sent to the speakers.
If there is an open or short in the circuit, sound cannot be heard from the speakers even if there is no malfunction in the stereo component amplifier, radio receiver, or speakers.

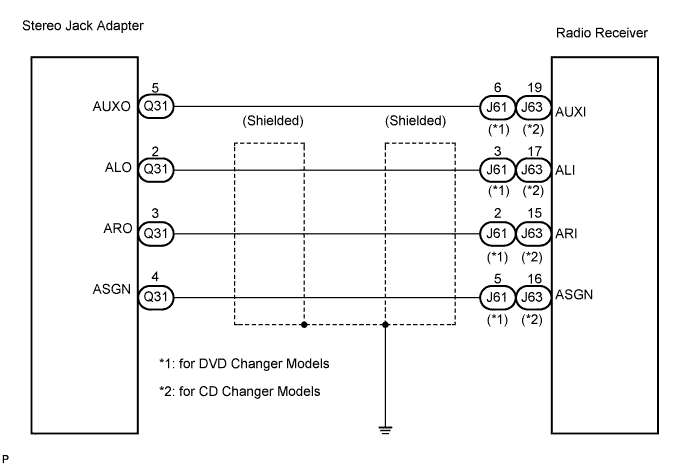

WIRING DIAGRAM
INSPECTION PROCEDURE
| 1. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - STEREO JACK ADAPTER) |

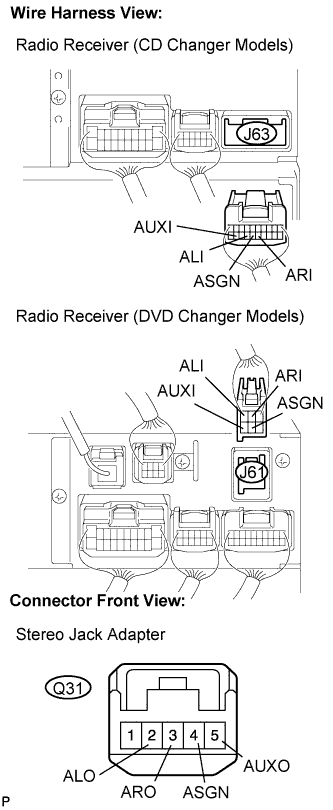

Disconnect the connectors from the stereo jack adapter and radio receiver.
Measure the resistance according to the value(s) in the table below.
- Standard resistance:
Tester connection
Condition
Specified condition
AUXO - AUXI
Always
Below 1 Ω
ASGN - ASGN
Always
Below 1 Ω
ARO - ARI
Always
Below 1 Ω
ALO - ALI
Always
Below 1 Ω
AUXO - Body ground
Always
10 kΩ or higher
ASGN - Body ground
Always
10 kΩ or higher
ARO - Body ground
Always
10 kΩ or higher
ALO - Body ground
Always
10 kΩ or higher
|
|
||||
| OK | ||
 |
||
| ||
