(g) CLIPS

(1) The removal and installation methods of typical clips used for vehicle body parts are shown in the table below.

HINT:

If clips are damaged during a procedure, always replace the clips with new clips.

Shape (Example)	Illustration	Procedures
		Remove clips with a clip remover or pliers.
		Remove clips with a clip remover or screwdriver.
		Remove clips with a wide scraper to prevent panel damage.
		Remove clips by pushing the center pin through and prying out the shell.
		Remove clips by unscrewing the center pin and prying out the shell.
		Remove clips by prying out the pin and then prying out the shell.

(h) CLAWS

(1) The removal and installation methods of typical claws used for vehicle body parts are shown in the table below.

HINT:

If claws of caps or covers are damaged during a procedure, always replace the caps or covers with new ones.

Shape (Example)	Illustration	Procedures
		Using a screwdriver, detach the claws and remove the caps or covers.
		Using a screwdriver, detach the claws and remove the caps or covers.
		Using a screwdriver, detach the claws and remove the caps or covers.

(i) HINGE, GUIDE, CLAMP, PIN ETC.

(1) The removal and installation methods of typical hinges, guides, clamps and pins used for vehicle body parts are shown in the table below.

HINT:

If clamps are damaged during a procedure, always replace the cap or cover that has damaged clamps with a new one.

Shape (Example)	Illustration	Procedures
		Disengage the pins by pulling.
		Disengage the pins by pulling.
		Remove the clamps with pliers.
		Disengage the pins by pulling.

(j) REMOVAL AND INSTALLATION OF VACUUM HOSES

(1) To disconnect a vacuum hose, pull and twist from the end of the hose. Do not pull from the middle of the hose as this may cause damage.

(2) When disconnecting vacuum hoses, use tags to identify where they should be reconnected.

(3) After completing any hose related repairs, double check that the vacuum hoses are properly connected. The label under the hood shows the proper layout.

(4) When using a vacuum gauge, never force the hose onto a connector that is too large. If a hose has been stretched, it may leak air. Use a step-down adapter if necessary.

(k) TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL (1) Use the formula below to calculate special torque values for situations where SST or an extension tool is combined with a torque wrench. Formula: T' = L2 / (L1 + L2) * T T' Reading of torque wrench {N*m (kgf*cm, ft.*lbf)} T Torque {N*m (kgf*cm, ft.*lbf)} L1 Length of SST or extension tool {cm (in.)} L2 Length of torque wrench {cm (in.)}

NOTICE:

If an extension tool or SST is combined with a torque wrench and the wrench is used to tighten to a torque specification in this manual, the actual torque will be excessive and parts will be damaged.

2. FOR VEHICLES WITH SUPPLEMENTAL RESTRAINT SYSTEM

The LEXUS LX570 is equipped with a Supplemental Restraint System (SRS). The SRS of this vehicle consists of the following:

(a) SPIRAL CABLE

(1) The steering wheel must be fitted correctly to the steering column with the spiral cable at the neutral position, as cable disconnection and other problems may occur. Refer to the information about correct installation of the steering wheel.

(b) AIRBAG ASSEMBLY

(1) Airbag assembly with pad:

Always place a removed or new airbag assembly with the pad surface facing upward. Placing the airbag assembly with the airbag inflation direction facing downward could cause a serious accident if the airbag inflates. Also, do not place anything on top of the airbag assembly.

(2) Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause a serious injury.

(3) Grease or detergents of any kind should not be applied to the airbag assembly.

(4) Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.

(5) When using electric welding anywhere on the vehicle, disconnect the center airbag sensor connectors. These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.

(6) When disposing of the vehicle or the airbag assembly by itself, the airbag should be deployed using SST before disposal. Activate the airbag in a safe place away from electrical noise.

(c) SEAT OUTER BELT ASSEMBLY WITH PRETENSIONER

(1) Never measure the resistance of the seat outer belt. This may cause the pretensioner of the seat outer belt to activate, which could cause a serious injury.

(2) Never install the seat outer belt on another vehicle.

(3) Store the seat outer belt in an area where the ambient temperature is below 80°C (176°F), the humidity is not high and there is no electrical noise.

(4) When using electric welding anywhere on the vehicle, disconnect the center airbag sensor connectors (2 pins). These connectors contain shorting springs. This feature reduces the possibility of the pretensioner deploying due to currents entering the squib wiring.

(5) When disposing of a vehicle or the seat outer belt by itself, the pretensioner should be activated before disposal. Activate the pretensioner in a safe place away from electrical noise.

(6) As the seat outer belt is hot after the pretensioner is activated, allow some time for it to cool down sufficiently before disposal. Never apply water to try to cool down the seat outer belt.

(7) Grease, detergents, oil or water should not be applied to the seat outer belt.

(d) AIRBAG SENSOR ASSEMBLY

(1) Never reuse an airbag sensor assembly that has been involved in a collision where the SRS has deployed.

(2) The connectors to the airbag sensor assembly should be connected or disconnected with the sensor placed on the floor. If the connectors are connected or disconnected while the airbag sensor assembly is not placed on the floor, the SRS may activate.

(3) Work must be started at least 90 seconds after the engine switch is turned off and the cable is disconnected from the negative (-) battery terminal, even if only loosening the set bolts of the airbag sensor assembly.

(e) WIRE HARNESS AND CONNECTOR

(1) The SRS wire harness is integrated with the instrument panel wire harness assembly. All the connectors in the system are yellow. If the SRS wire harness becomes disconnected or the connector becomes broken, repair or replace it.

3. ELECTRONIC CONTROL

(a) REMOVAL AND INSTALLATION OF BATTERY CABLE (1) Before performing electronic work, disconnect the cable from the negative (-) battery terminal to prevent component and wire damage caused by accidental short circuits. (2) When disconnecting the cable, turn the engine switch off and headlight dimmer switch off and loosen the cable nut completely. Perform these operations without twisting or prying the cable. Then disconnect the cable. (3) Clock settings*, radio settings, audio system memory, DTCs and other data are cleared when the cable is disconnected from the negative (-) battery terminal. Write down any necessary data before disconnecting the cable. HINT: *: w/o Navigation System (4) Certain systems need to be initialized after disconnecting and reconnecting the cable to the negative (-) battery terminal.

(b) HANDLING OF ELECTRONIC PARTS

(1) Do not open the cover or case of an ECU unless absolutely necessary. If the IC terminals are touched, the IC may be rendered inoperative by static electricity.

(2) Do not pull the wires when disconnecting electronic connectors. Pull the connector.

(3) Be careful not to drop electronic components, such as sensors or relays. If they are dropped on a hard surface, they should be replaced.

(4) When cleaning the engine with steam, protect the electronic components, air filter and emissions-related components from water.

(5) Never use an impact wrench to remove or install temperature switches or temperature sensors.

(6) When measuring the resistance of a wire connector, insert the tester probe carefully to prevent the terminals from bending.

4. REMOVAL AND INSTALLATION OF FUEL CONTROL PARTS

(a) PLACE FOR REMOVING AND INSTALLING FUEL SYSTEM PARTS

(1) Work in a location with good air ventilation that does not have welders, grinders, drills, electric motors, stoves, or any other ignition sources.

(2) Never work in a pit or near a pit as vaporized fuel will collect in those places.

(b) REMOVING AND INSTALLING FUEL SYSTEM PARTS

(1) Prepare a fire extinguisher before starting the operation.

(2) To prevent static electricity, install a ground wire to the fuel changer, vehicle and fuel tank, and do not spray the surrounding area with water. Be careful when performing work in this area, as the work surface will become slippery. Do not clean up gasoline spills with water, as this may cause the gasoline to spread, and possibly create a fire hazard.

(3) Avoid using electric motors, working lights and other electric equipment that can cause sparks or high temperatures.

(4) Avoid using iron hammers as they may create sparks.

(5) Dispose of fuel-contaminated cloths separately using a fire resistant container.

5. REMOVAL AND INSTALLATION OF ENGINE INTAKE PARTS

(a) If any metal particles enter inlet system parts, they may damage the engine.

(b) When removing and installing inlet system parts, cover the openings of the removed parts and engine openings. Use gummed tape or other suitable materials.

(c) When installing inlet system parts, check that no metal particles have entered the engine or the installed parts.

6. HANDLING OF HOSE CLAMPS (a) Before removing the hose, check the clamp position so that it can be reinstalled in the same position. (b) Replace any deformed or dented clamps with new ones. (c) When reusing a hose, attach the clamp on the clamp track portion of the hose. (d) For a spring type clamp, you may want to spread the tabs slightly after installation by pushing in the direction of the arrows as shown in the illustration.

7. FOR VEHICLES EQUIPPED WITH MOBILE COMMUNICATION SYSTEMS

(a) Install the antenna as far away from the ECU and sensors of the vehicle electronic systems as possible.

(b) Install the antenna feeder at least 20 cm (7.87 in.) away from the ECU and sensors of the vehicle electronic systems. For details about ECU and sensor locations, refer to the section of the applicable components.

(c) Keep the antenna and feeder separate from other wiring as much as possible. This will prevent signals from the communication equipment from affecting vehicle equipment and vice versa.

(d) Check that the antenna and feeder are correctly adjusted.

(e) Do not install a high-powered mobile communication system.

8. WHEN INSPECTING HEADLIGHT

(a) When the headlights are illuminated, do not cover the headlights for 3 minutes or more. NOTICE: As the outer lens of the headlight is made of resin, the resulting heat created when covering the headlight for an extended period of time may deform the headlight.

9. WHEN SERVICING FULL-TIME 4WD VEHICLES

(a) Full-time 4WD vehicles are equipped with a mechanical lock type center differential system.

(b) During tests that require the use of a brake tester or chassis dynamometer, such as braking force tests or speedometer tests, if only the front or rear wheels are to be rotated, it is necessary to set the center differential to lock or free depending on the type of test being performed. Center Differential Free Condition Item Condition Wheel Center differential switch Off A lifted wheel can be rotated if only one wheel is lifted up, as long as the transmission is in N. Indicator light Off 4WD control switch (H4/L4) Either

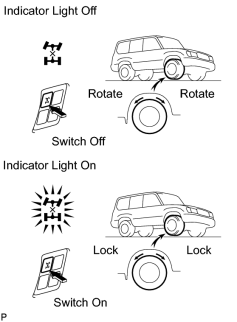

Center Differential Lock Condition

Item	Condition	Wheel
Center differential switch	On	When only one wheel is lifted up and the transmission is in N, the lifted wheel cannot be rotated.
Indicator light	On
4WD control switch (H4/L4)	Either

CAUTION:

Center differential lock ←→ free selecting procedures:

• Operate the switch only when all 4 wheels are stopped or driving in a straight line.
• Never operate the switch when any wheel is slipping.
• Never operate the switch when any wheel is spinning freely.
• Never operate the switch when swerving or cornering.

10. WHEN TESTING BRAKES, SPEEDOMETER, ETC.

(a) When carrying out any kind of servicing or testing on a Full-time 4WD with Active Traction Control System & Vehicle Stability Control (VSC) System in which the front or rear wheels are to be rotated (braking test, speedometer test), be sure to observe the precautions listed below. Incorrect preparations or test procedures may cause damage as well as unsuccessful test results.

(b) Before starting any such servicing or test, be sure to check the following items:

(c) When using a braking force tester (not free roller type): When performing measurements using a low-speed type braking force tester, observe the following instructions. (1) Enter test mode using the Techstream . (2) Set the center differential to lock. (3) Position the rear wheels on the braking force tester. (4) Jack up the front wheels. (5) Ensure that the vehicle does not move using chains or equivalent. (6) Move the shift lever to N. (7) Idle the engine, operate the brake booster and perform the test. CAUTION: If the vehicle is tested in normal mode on the drum tester, VSC operation may cause the vehicle to jump out from the drum tester. NOTICE: The maximum driving time should be 1 minute. Do not forget to change the VSC to the operational condition after the test.

(d) When using a braking force tester (free roller type): When performing measurements using a low-speed type braking force tester, observe the following instructions. (1) Enter test mode using the Techstream . (2) Set the center differential to free. (3) Position the rear wheels on the braking force tester roller. (4) Position the front wheels on the free roller. (5) Ensure that the vehicle does not move using chains or equivalent. (6) Move the shift lever to N. (7) Idle the engine, operate the brake booster and perform the test. CAUTION: If the vehicle is tested in normal mode on the drum tester, VSC operation may cause the vehicle to jump out from the drum tester. NOTICE: The maximum driving time should be 1 minute. Do not forget to change the VSC to the operational condition after the test.

(e) When using a speedometer (not free roller type):

Observe the following instructions and then measure with the rear wheels.

(1) Enter test mode using the Techstream .

(2) Set the center differential to lock.

(3) Position the rear wheels on the speedometer.

(4) Jack up the front wheels.

(5) Ensure that the vehicle does not move using chains or equivalent.

(6) Move the shift lever to D.

CAUTION:

If the vehicle is tested in normal mode on the drum tester, VSC operation may cause the vehicle to jump out from the drum tester.

(f) When using a speedometer (free roller type):

Observe the following instructions and then measure with the rear wheels.

(1) Enter test mode using the Techstream .

(2) Set the center differential to lock.

(3) Position the rear wheels on the speedometer tester roller.

(4) Position the front wheels on the free roller.

(5) Ensure that the vehicle does not move using chains or equivalent.

(6) Move the shift lever to D.

CAUTION:

If the vehicle is tested in normal mode on the drum tester, VSC operation may cause the vehicle to jump out from the drum tester.

(g) Using a chassis dynamometer. NOTICE: If you do not observe the following conditions for the test, there will be cases where the 4WD functions will deteriorate, the parts in the drivetrain system will malfunction, or the vehicle will jump out. Therefore, do not conduct a test unless observing the following conditions. HINT: When conducting a test with the vehicle highly loaded and driven at high speeds, observe the following: Chassis Dynamometer Type Vehicle Speed and Test Time Propeller Shaft 4-wheel drive chassis dynamometer No restriction Normal (Do not remove)

NOTICE:

• Do not suddenly accelerate and do not suddenly apply the brakes.
• Confirm that the vehicle is securely immobilized.

11. FOR VEHICLES EQUIPPED WITH CATALYTIC CONVERTER

CAUTION:

If a large amount of unburned gasoline or gasoline vapors flow into the converter, it may cause overheating and create a fire hazard. To prevent this, observe the following precautions.

(a) Use only unleaded gasoline.

(b) Avoid idling the engine for more than 20 minutes.

(c) When performing spark jump tests:

(1) Perform a spark jump test only when absolutely necessary. Perform this test as rapidly as possible.

(2) While testing, never race the engine.

(d) Avoid a prolonged engine compression measurement. Engine compression measurements must be performed as rapidly as possible.

(e) Do not run the engine when the fuel tank is nearly empty. This may cause the engine to misfire and create an extra load on the converter.

12. WHEN TOWING FULL-TIME 4WD VEHICLES

(a) Use one of the methods shown below to tow the vehicle.

(1) If the vehicle has trouble in the chassis and drivetrain, use method 1 (flat bed truck).

Towing Method		Parking Brake Condition	Transmission Shift Lever Position
1. Flat Bed Truck		Applied	Any Position
2. Wheel Lift Type Truck From Front From Rear		Applied

NOTICE:

Do not use any towing method other than those shown above.

(2) For example, the towing methods shown below are dangerous or may damage the vehicle, so do not use them.

Never tow the vehicle using a method where the lifted-up wheels cannot rotate. If this towing method is used, either from the front or rear: There is a danger of the drivetrain heating up and causing a breakdown, or of the wheels flying off the dolly. In addition, if the vehicle is equipped with a Vehicle Stability Control (VSC) and Traction Control (TRAC) system, the system will apply the brakes of the rotating wheels unless the engine is shut off.

Do not use the sling type method, either from the front or rear, as this method causes damage to the body.
