| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Vehicle Exterior | Section: Mirror (ext) | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000000W1J00RX |
| Title: MIRROR (EXT): OUTER MIRROR SWITCH: INSTALLATION (2008 LX570) | ||
INSTALLATION
1. INSTALL OUTER MIRROR SWITCH ASSEMBLY
|
(a) Install the mirror switch with the 3 screws. |
2. INSTALL NO. 1 SWITCH HOLE BASE
|
(a) Connect the 2 connectors. |

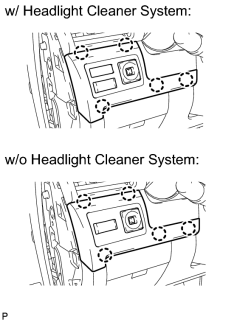

(b) Attach the 5 claws to install the switch hole base.
3. INSTALL INSTRUMENT SIDE PANEL LH
|
|
