Home Drivetrain Automatic Transmission/Transaxle AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM
Last Modified: 11-27-2007 1.6 J
Service Category: Drivetrain Section: Automatic Transmission/Transaxle
Model Year: 2008 Model: LX570 Doc ID: RM000000XP201UX
Title: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: DESCRIPTION (2008 LX570)

Pattern Select Switch Power Mode Circuit

DESCRIPTION

The ECM memory contains the programs for the normal and power shift patterns and lock-up pattern.

By following the programs corresponding to the signals from the No. 1 pattern select switch assembly, the park/neutral position switch and other various sensors, the ECM switches the shift solenoid valves on and off, and controls the transmission gear change and the lock-up clutch operation.

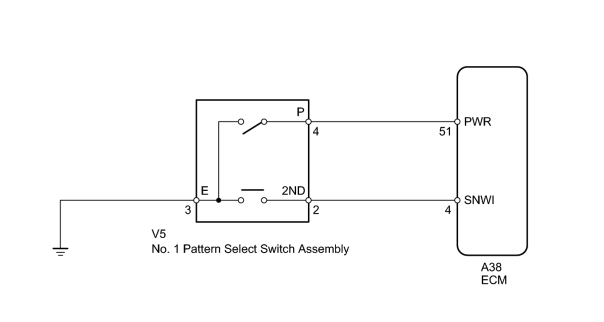

WIRING DIAGRAM



INSPECTION PROCEDURE

When the pattern select switch (PWR) is pushed, switch contact is made and power mode is selected. To cancel power mode, push the pattern select switch (PWR) once again.

PROCEDURE

1.

INSPECT NO. 1 PATTERN SELECT SWITCH ASSEMBLY (PWR)


(a) Remove the No. 1 pattern select switch assembly AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: PATTERN SELECT SWITCH: REMOVAL (2008 LX570) .

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

4 (P) - 3 (E)

Pattern select switch (PWR) on

Below 1 Ω

4 (P) - 3 (E)

Pattern select switch (PWR) off

10 kΩ or higher

OK

2.

CHECK HARNESS AND CONNECTOR (NO. 1 PATTERN SELECT SWITCH ASSEMBLY - BODY GROUND)


(a) Disconnect the V5 No. 1 pattern select switch assembly connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

V5-3 (E) - Body ground

Always

Below 1 Ω

OK

3.

CHECK HARNESS AND CONNECTOR (NO. 1 PATTERN SELECT SWITCH ASSEMBLY - ECM)



(a) Disconnect the A38 ECM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

A38-51 (PWR) - Body ground

Pattern select switch (PWR) on

Below 1 Ω

A38-51 (PWR) - Body ground

Pattern select switch (PWR) off

10 kΩ or higher

OK
