Parking Brake Switch Circuit |
DESCRIPTION
This circuit is from the parking brake switch to the multi-display.
HINT:
If the vehicle has a navigation system, "multi-display" refers to the "display and navigation module display".

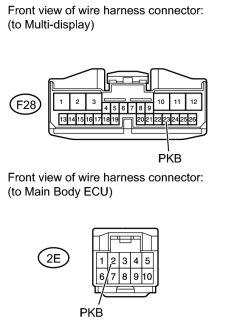

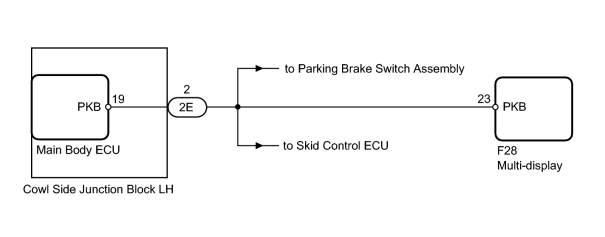

WIRING DIAGRAM
INSPECTION PROCEDURE
PROCEDURE
|
1. |
CHECK PARKING BRAKE (DISPLAY CHECK MODE) |
(a) Enter the "Display Check" mode and select "Vehicle Signal Check Mode"
.
|
(b) Check that the display changes between ON and OFF according to the parking brake operation. OK:
HINT:
This display is updated once per second. As a result, it is normal for the display to lag behind the actual change in the switch. |
|
|
2. |
CHECK MAIN BODY ECU (PARKING BRAKE SIGNAL) |
|
(a) Disconnect the F28 display connector. |
(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
F28-23 (PKB) - Body ground |
Engine switch on (IG), parking brake applied |
11 to 14 V |
|
F28-23 (PKB) - Body ground |
Engine switch on (IG), parking brake released |
Below 1 V |
Result
|
Result |
Proceed to |
|---|---|
|
OK (w/ Navigation System) |
A |
|
OK (w/o Navigation System) |
B |
|
NG |
C |
|
|
3. |
CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - MAIN BODY ECU) |
|
(a) Disconnect the F28 display connector. |
(b) Disconnect the 2E ECU connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
F28-23 (PKB) - 2E-2 (PKB) |
Always |
Below 1 Ω |
|
F28-23 (PKB) - Body ground |
Always |
10 kΩ or higher |
|
|
4. |
REPLACE MAIN BODY ECU |
(a) Temporarily replace the ECU with a new or normally functioning one.
(b) Check that the parking brake signal is displayed on the multi-display.
OK:
Parking brake signal is displayed on the multi-display.
Result
|
Result |
Proceed to |
|---|---|
|
OK |
A |
|
NG (w/ Navigation System) |
B |
|
NG (w/o Navigation System) |
C |
|
|
|
