| Last Modified: 11-27-2007 | 1.6 J | |
| Service Category: Brake | Section: Brake Control/Dynamic Control System | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000001DXE00PX |
| Title: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: DESCRIPTION (2008 LX570) | ||
|
ABS Warning Light Remains ON |
DESCRIPTION
If any of the following is detected, the ABS warning light remains on.
- The skid control ECU connectors are disconnected from the skid control ECU.
- There is a malfunction in the skid control ECU internal circuit.
- There is an open in the harness between the combination meter and skid control ECU.
HINT:
There is a case that the Techstream cannot be used when the skid control ECU is abnormal.

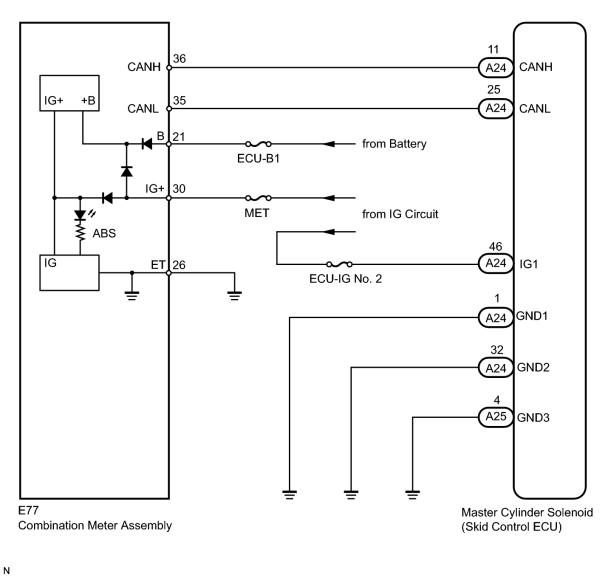

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
When replacing the master cylinder solenoid, perform zero point calibration
.
PROCEDURE
|
1. |
INSPECT IF SKID CONTROL ECU CONNECTOR IS SECURELY CONNECTED |
(a) Check the skid control ECU connector connection.
OK:
The connector is securely connected.
|
|
2. |
INSPECT BATTERY |
(a) Check the battery voltage.
Standard Voltage:
11 to 14 V
|
|
3. |
CHECK CAN COMMUNICATION LINE |
(a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3.
(c) Turn the engine switch on (IG) and the Techstream on.
(d) Select "CAN Bus Check" from the System Selection Menu screen, and follow the prompts on the screen to inspect the CAN Bus.
OK:
"CAN Bus Check" indicates no malfunctions in CAN communication.
|
|
4. |
CHECK DTC (for CAN Communication System) |
(a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3.
(c) Turn the engine switch on (IG) and the Techstream on.
(d) Check for DTCs
.
Result
|
Result |
Proceed to |
|---|---|
|
CAN system DTC is not output. |
A |
|
CAN system DTC is output. |
B |
|
|
5. |
CHECK OPERATION OF ABS WARNING LIGHT (ACTIVE TEST) |
(a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3.
(c) Turn the engine switch on (IG) and the Techstream on.
(d) Enter the following menus: Body Electrical / Combination Meter / Active Test.
(e) Check the condition of the ABS warning light by operating the Techstream.
Combination Meter
|
Tester Display |
Test Part |
Control Range |
Diagnostic Note |
|---|---|---|---|
|
Indicat. Lamp ABS |
ABS Warning Light |
Warning light ON/OFF |
- |
OK:
The warning light turns on when operating the Techstream.
|
|
6. |
INSPECT SKID CONTROL ECU (IG1 TERMINAL) |
|
(a) Disconnect the A24 skid control ECU connector. |
(b) Turn the engine switch on (IG).
(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
|
Tester Connection |
Switch Condition |
Specified Condition |
|---|---|---|
|
A24-46 (IG1) - Body ground |
Engine switch on (IG) |
11 to 14 V |
|
|
7. |
INSPECT SKID CONTROL ECU (GND TERMINAL) |
|

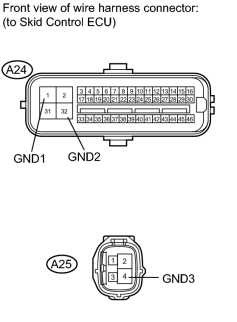

(a) Disconnect the A24 and A25 skid control ECU connectors. |
(b) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
A24-1 (GND1) - Body ground |
Always |
Below 1 Ω |
|
A24-32 (GND2) - Body ground |
Always |
Below 1 Ω |
|
A25-4 (GND3) - Body ground |
Always |
Below 1 Ω |
|
|
|
