Crawl Indicator Light Remains ON |
DESCRIPTION
When CRAWL control starts after operating the CRAWL switch, the CRAWL indicator light turns on. When CRAWL control of the engine stops, the CRAWL indicator light begins blinking. When CRAWL control totally stops, the CRAWL indicator light turns off.

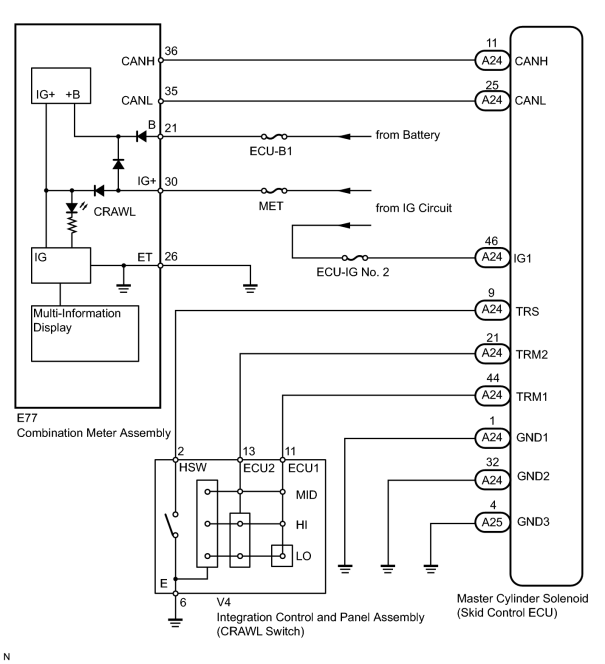

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTICE:
When replacing the master cylinder solenoid, perform zero point calibration
.
PROCEDURE
|
1. |
CHECK CAN COMMUNICATION LINE |
(a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3.
(c) Turn the engine switch on (IG) and the Techstream on.
(d) Select "CAN Bus Check" from the System Selection Menu screen, and follow the prompts on the screen to inspect the CAN Bus.
OK:
"CAN Bus Check" indicates no malfunctions in CAN communication.
|
|
2. |
CHECK DTC (for CAN Communication System) |
(a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3.
(c) Turn the engine switch on (IG) and the Techstream on.
(d) Check for DTCs
.
Result
|
Result |
Proceed to |
|---|---|
|
CAN system DTC is not output. |
A |
|
CAN system DTC is output. |
B |
|
|
3. |
CHECK OPERATION OF CRAWL INDICATOR LIGHT (ACTIVE TEST) |
(a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3.
(c) Turn the engine switch on (IG) and the Techstream on.
(d) Enter the following menus: Body Electrical / Combination Meter / Active Test.
(e) Check the condition of the CRAWL indicator light by operating the Techstream.
Combination Meter
|
Tester Display |
Test Part |
Control Range |
Diagnostic Note |
|---|---|---|---|
|
Indicat. Lamp CRAWL |
CRAWL Indicator Light |
Indicator light ON/OFF |
- |
OK:
The indicator light turns on when operating the Techstream.
|
|
|
