| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Audio/Visual/Telematics | Section: Audio/Video | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000002BC8008X |
| Title: AUDIO / VIDEO: TELEVISION DISPLAY: REMOVAL (2008 LX570) | ||
REMOVAL
1. REMOVE ENGINE ROOM SIDE COVER LH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
-
w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
-
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
3. REMOVE NO. 1 ROOF LINING TRIM COVER
|
(a) Detach the 4 claws and remove the cover. |
4. REMOVE NO. 2 ROOF LINING TRIM COVER
|
(a) Detach the 4 claws and remove the cover. |
5. REMOVE ROOF CONSOLE BOX ASSEMBLY
|
(a) Remove the 2 bolts. |
(b) Detach the 4 clips and 2 claws.
(c) Disconnect the connector and remove the roof console box.
6. REMOVE TELEVISION DISPLAY ASSEMBLY
(a) Disconnect the connectors.
|
(b) Remove the 5 bolts. |

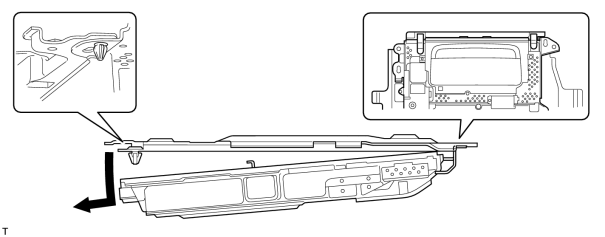

(c) Detach the clips and move the television display as shown in the illustration to detach the claws and remove it.
7. REMOVE SLIDING ROOF HOUSING SUB-ASSEMBLY
(a) Remove the sliding roof housing
.
8. REMOVE TELEVISION DISPLAY BRACKET
|
(a) Remove the 4 nuts and bracket. |
|
|
